CONSTRUCTION · SITE EQUIPMENT
ALBACommandPoint
The mobile, lockable base for the construction site — storage, power and light in one place, relocatable by crane or forklift.
Art.-Nr. 22798
- 01 Mobile, lockable steel cabinet — tools, material and equipment secure in one place.
- 02 When emptied, relocatable by crane (four lifting links) or forklift — the rugged base carries the load.
- 03 Canopy with gas struts opens easily and stays up — keeps off sun and light rain while you work.
- 04 Optionally electrified: power strip (CEE, 230 V / 16 A, IP55), LED light and screen mount up to 42″.
- 05 210 kg, galvanized sheet steel. Engineered in CH · Made in EU.
CRANE & FORKLIFT
To the next site — in one piece.
Four lifting links at the top corners take the crane hook: the CommandPoint hangs securely from the crane and is moved exactly to where the work is — even up to the next floor. Plans, tools and power are right where they are needed.

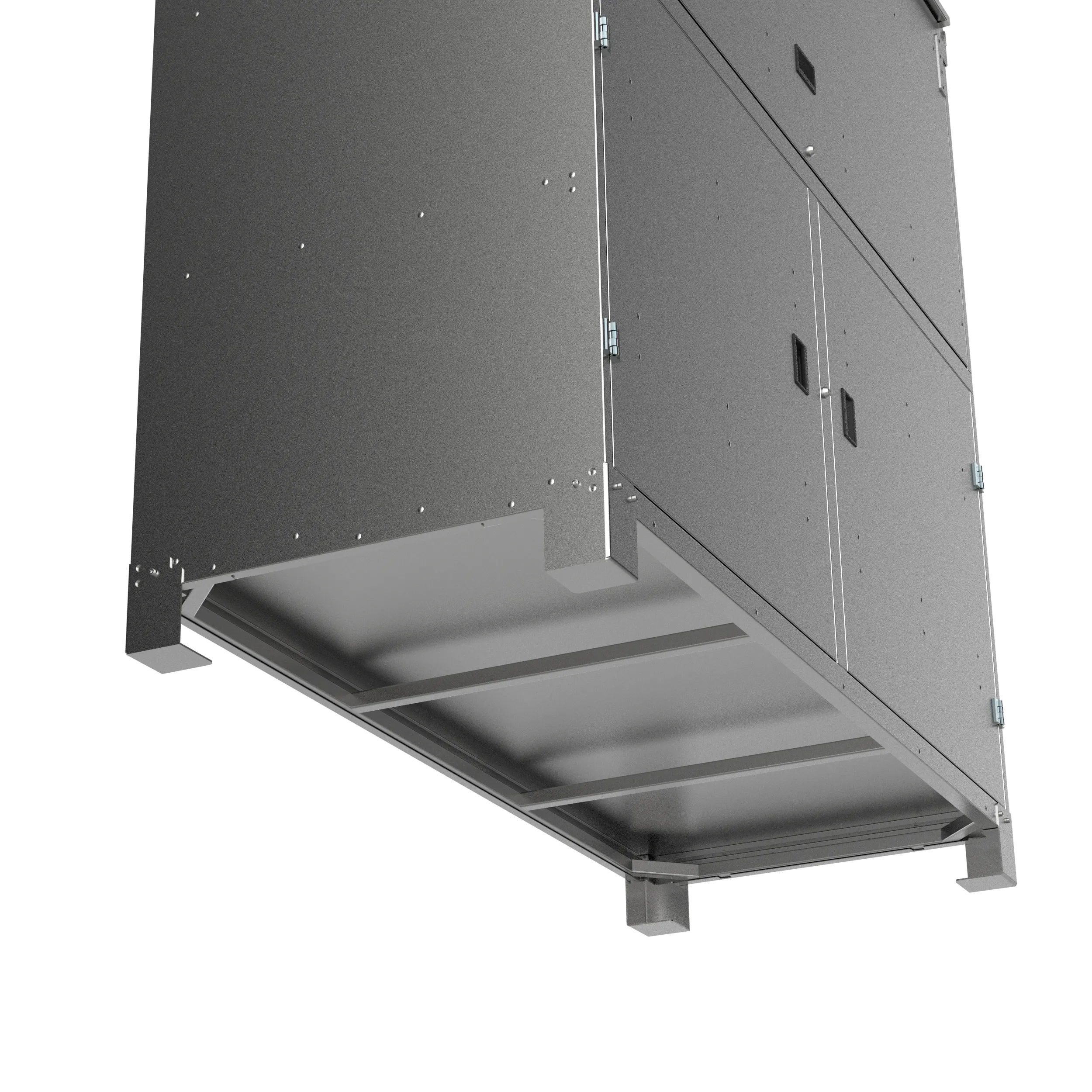

The rugged base carries the full load — where no crane is available, the CommandPoint moves by forklift.
The base comes to where you work.
LID & GAS STRUTS
Lid up, stays up.

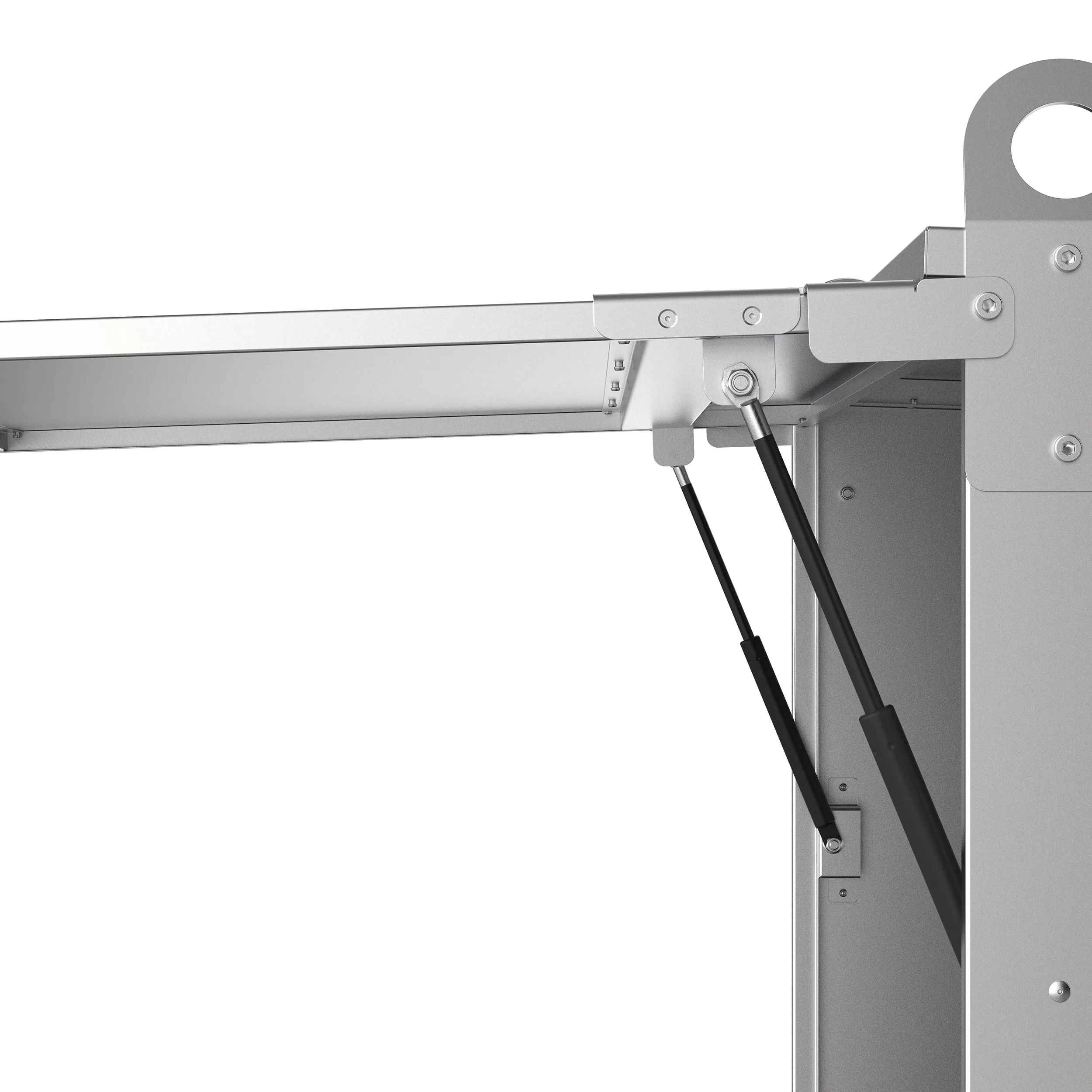

The lid opens upwards as a canopy and is held by two gas struts — no propping, no slamming. One hand is enough.
Open, the canopy shelters the work surface and contents from sun and light rain; the upper shelves are freely accessible.
Open, a roof; closed, a box.
SHELVES & TRAYS
Organised space, lockable.

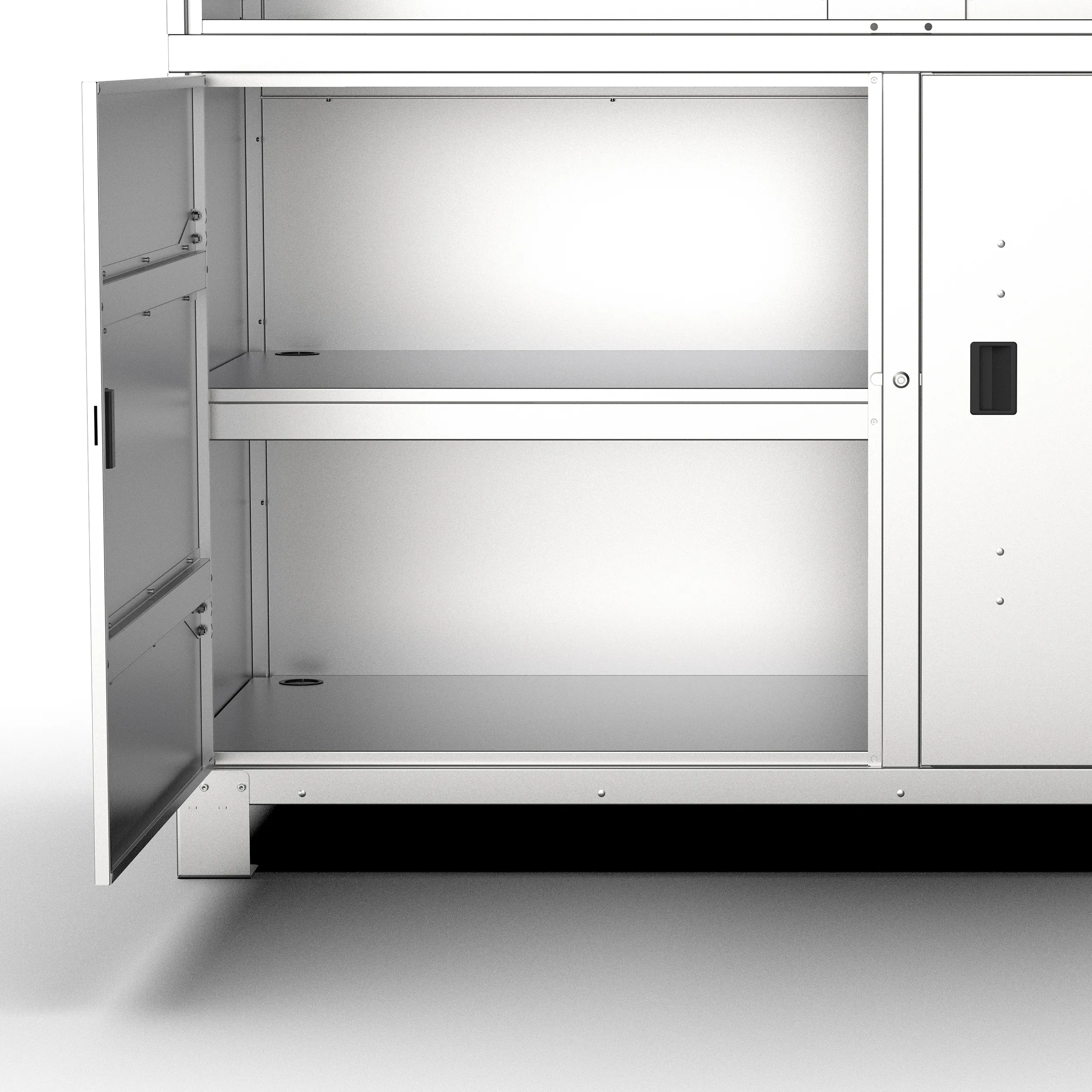

A large shelf area on top (1930 × 775 mm, up to 50 kg), two more below behind lockable double doors — tools and material at hand and secured.
Optional additional trays subdivide the upper space; each carries up to 30 kg.
Three levels, one lock.
ELECTRIFICATION (OPTIONAL)
Power and light where the work happens.

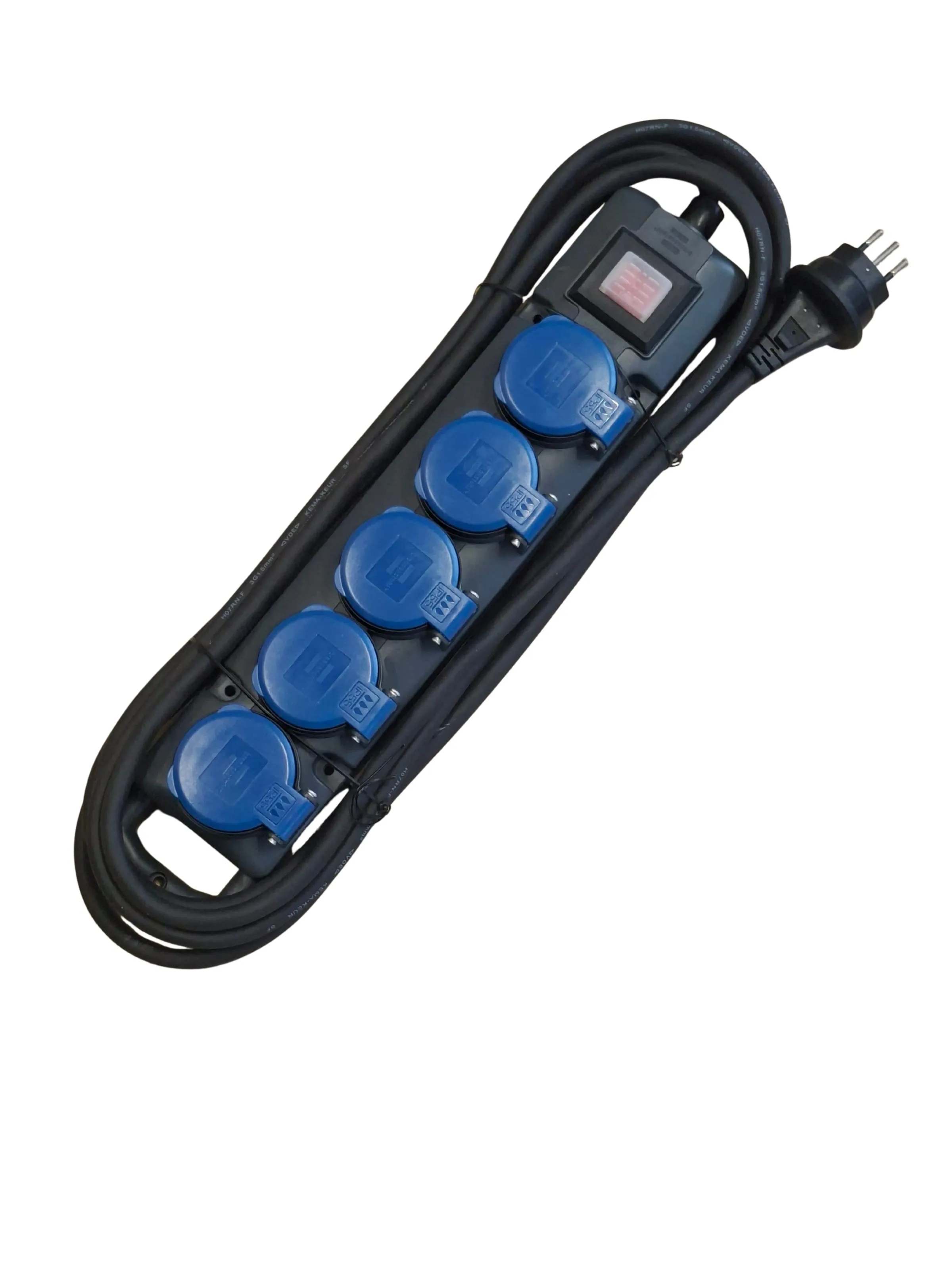

Optionally, the CommandPoint comes electrified: a power strip with CEE sockets (230 V / 16 A, IP55 rated) supplies equipment right at the cabinet.
Plus an LED low-voltage light for bright visibility and tidy cable routing through the body — no cable clutter on site.
From steel cabinet to workplace.
SCREEN MOUNT (OPTIONAL)
Plans and training right on site.

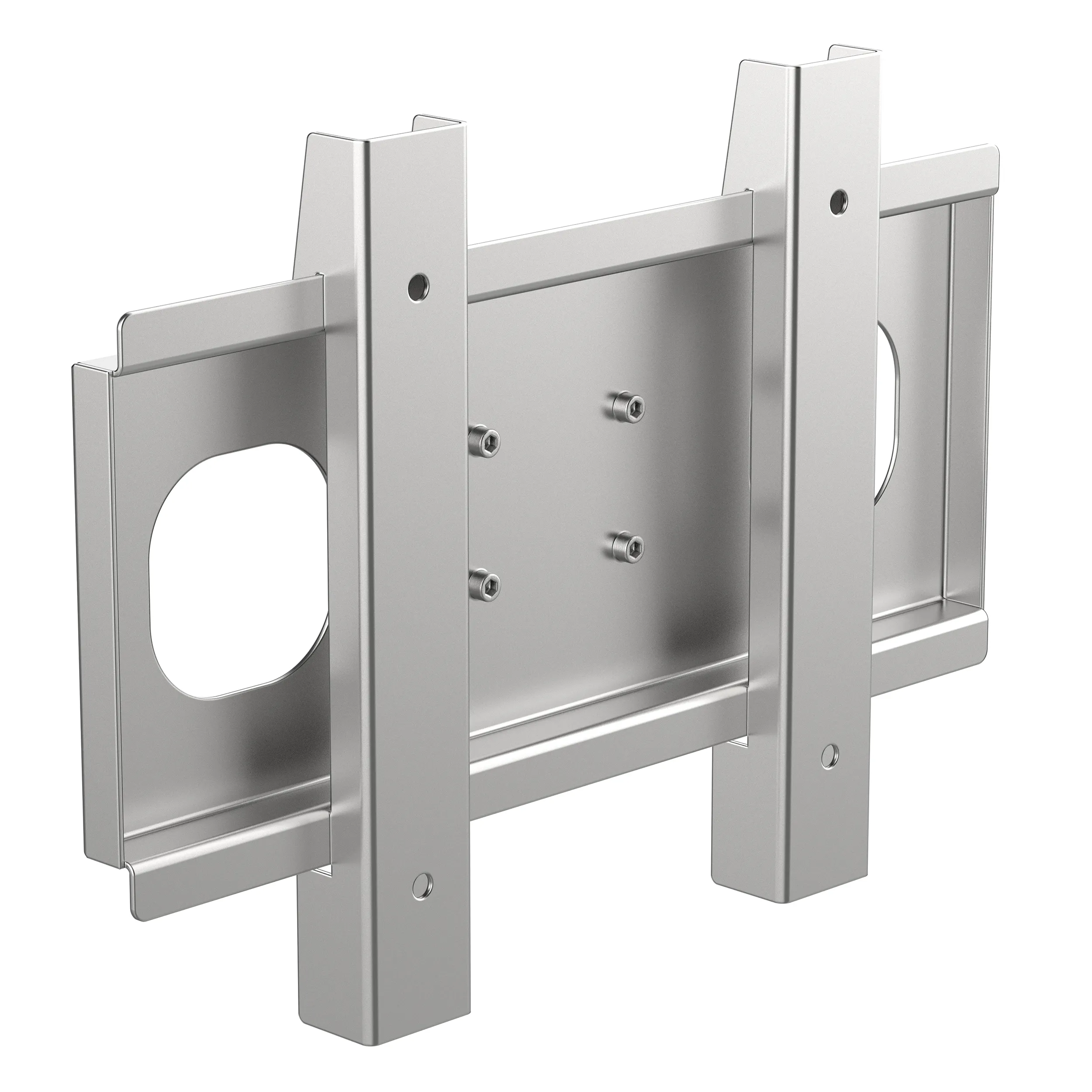

An optional mount takes a screen up to 42″ — for construction plans, visualisations or training right where the work happens.
The steel cabinet becomes a meeting point: everyone looks at the same plan, in the middle of the site.
The plan comes to the crew.
Technical data
Technical data.
The mobile, electrifiable base for the construction site.
| Feature | Value |
|---|---|
| Art. no. | 22798 |
| External dimensions (W × D × H) | 1938 × 822 × 2101 mm |
| Weight | 210 kg |
| Material | galvanized sheet steel |
| Shelf area, top | 1930 × 775 mm, max. 50 kg |
| Shelf area, bottom | 2× 1930 × 775 mm, max. 50 kg each |
| Transport | 4 lifting links for crane hook · rugged, forklift-compatible base |
| Canopy | lid with gas struts |
| Locking | lockable canopy + lockable double doors |
| Optional accessories | 2× upper tray (1911 × 302 mm, max. 30 kg each) · screen mount up to 42″ · power strip IP55 (CEE 230 V / 16 A) · LED low-voltage lighting |
| Origin | Engineered in CH · Made in EU |
Documents
ALBA CommandPoint — everything to download.
Documents, instructions and technical data — as PDFs.
