ALBAPlan Station 1

The lockable Plan Station on an open frame — a workstation for A0 plans, with the lid as a canopy.

Art.-Nr. 22791

01 Fully lockable — the eyelet under the worktop takes any standard padlock.
02 The lid becomes a canopy when open; the rear-wall window lets in light.
03 Worktop for A0 drawings, internal side compartment for plans.
04 Stable thanks to wide foot plates with anti-sink protection.
05 Four fold-in crane lifting eyes — folded out for moving by hook, folded in they lie flat: space-saving and convenient.
06 Steel — frame powder-coated, panels galvanized. Engineered in CH · Made in EU.

Note: the images do not yet show the new locking system — updated photos to follow.

LID & LIGHT

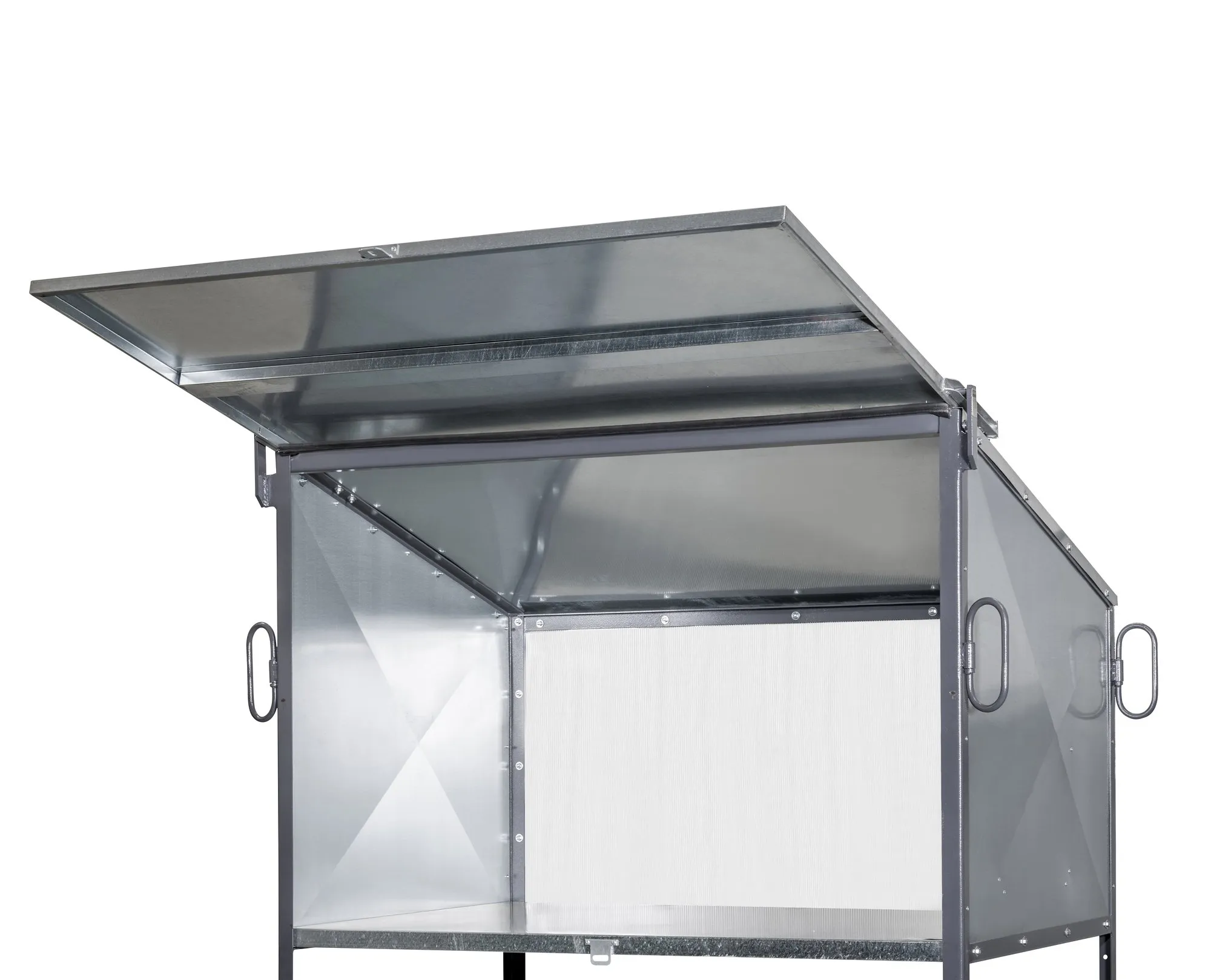

Lid up — canopy ready.

When open, the lid folds up and becomes a canopy: work under cover, even when it drips.

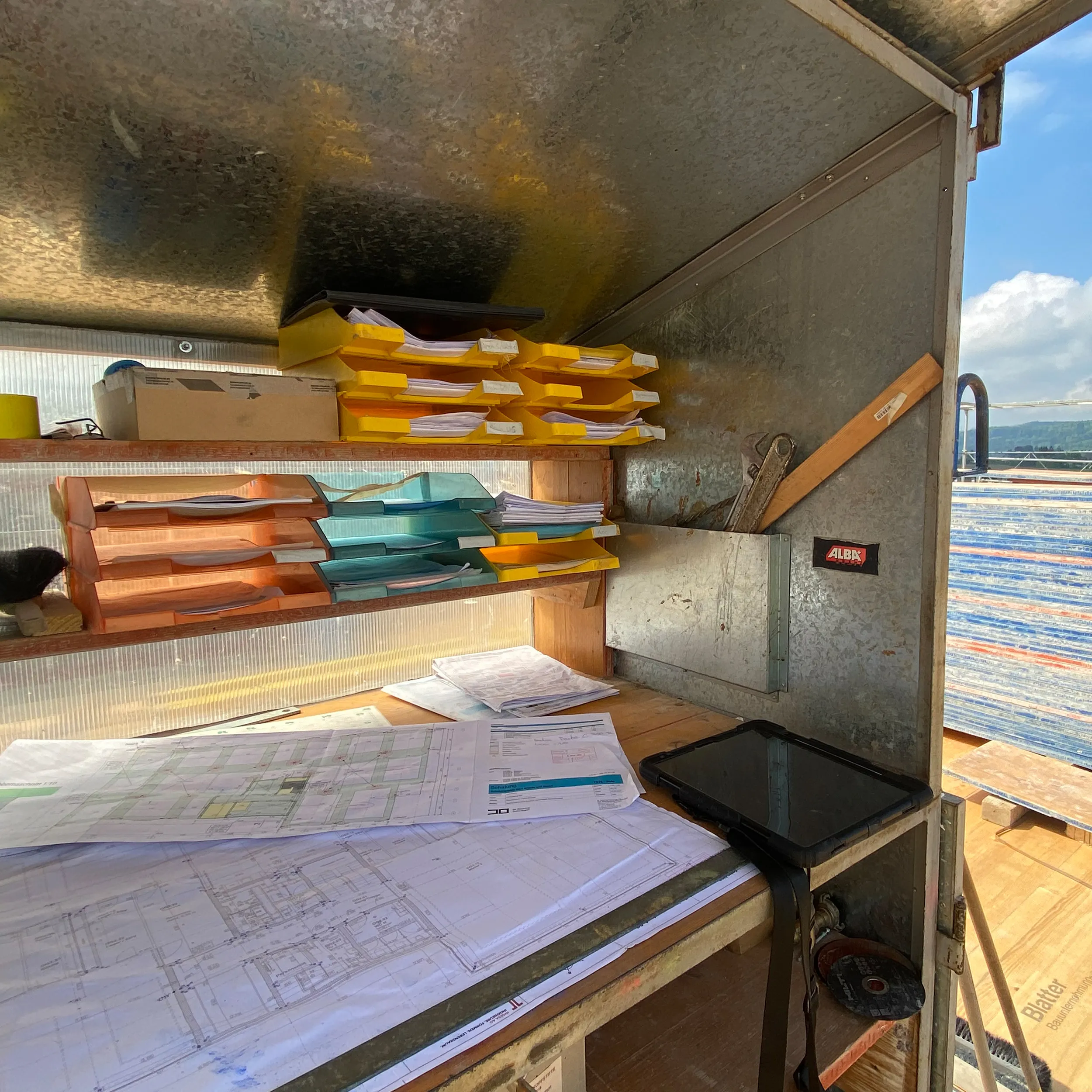

The rear-wall window brings daylight onto the worktop — A0 plans lie bright and within reach.

Open, a roof; closed, a box.

ORDER

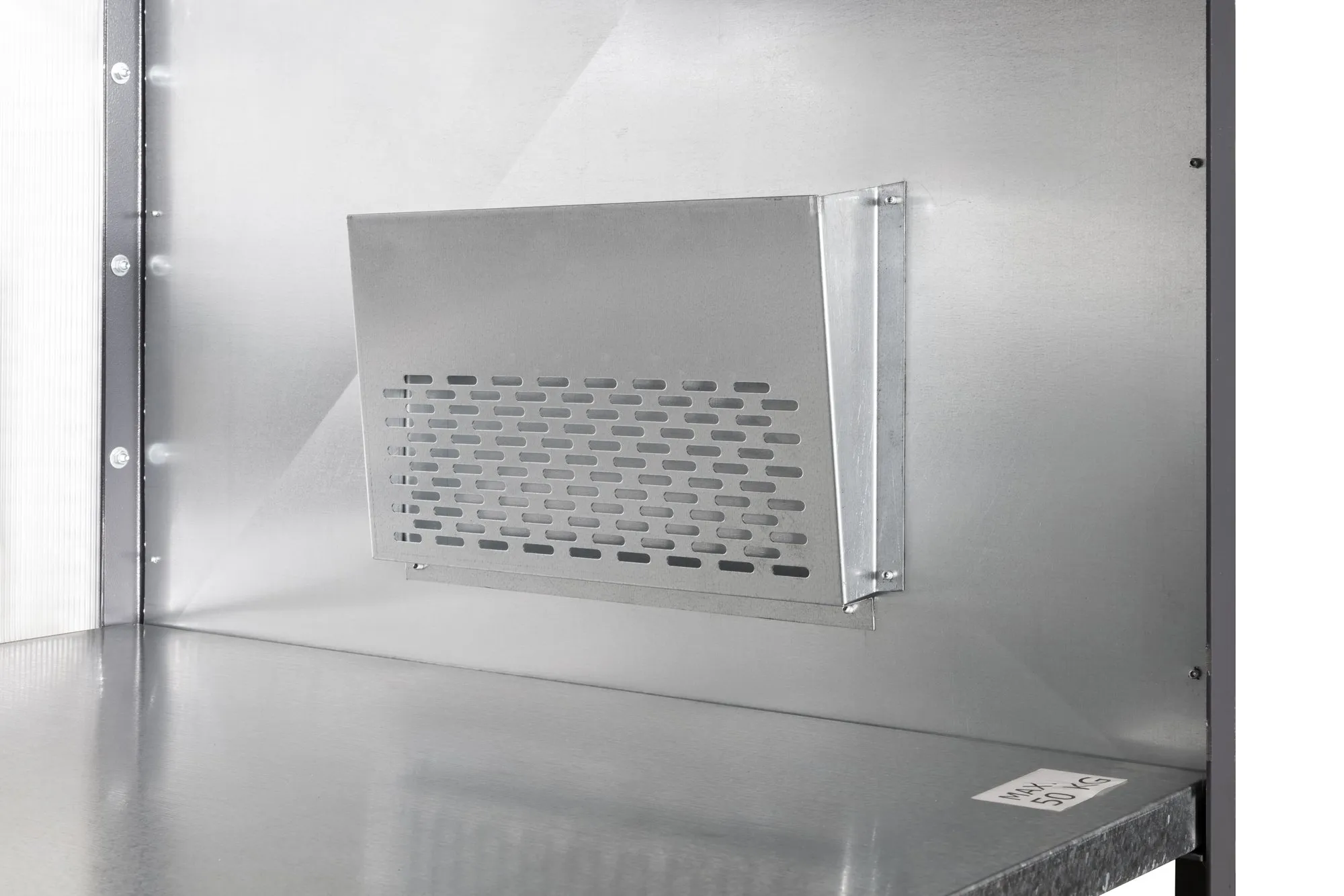

The internal side compartment keeps drawings and plans sorted and crease-free.

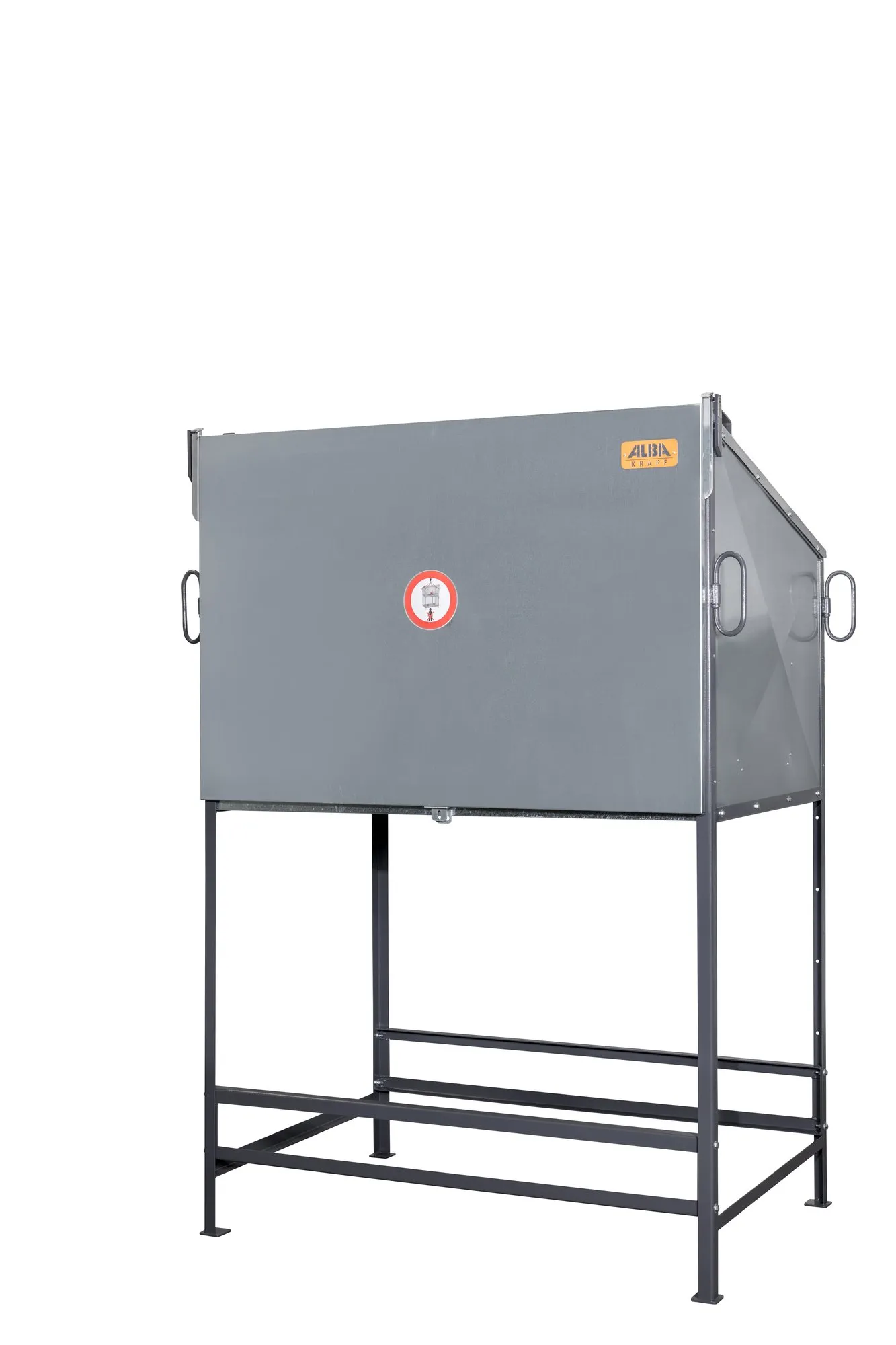

Locked, everything stays inside — tools and documents secure on site.

Side compartment for plans.

LOCKABLE

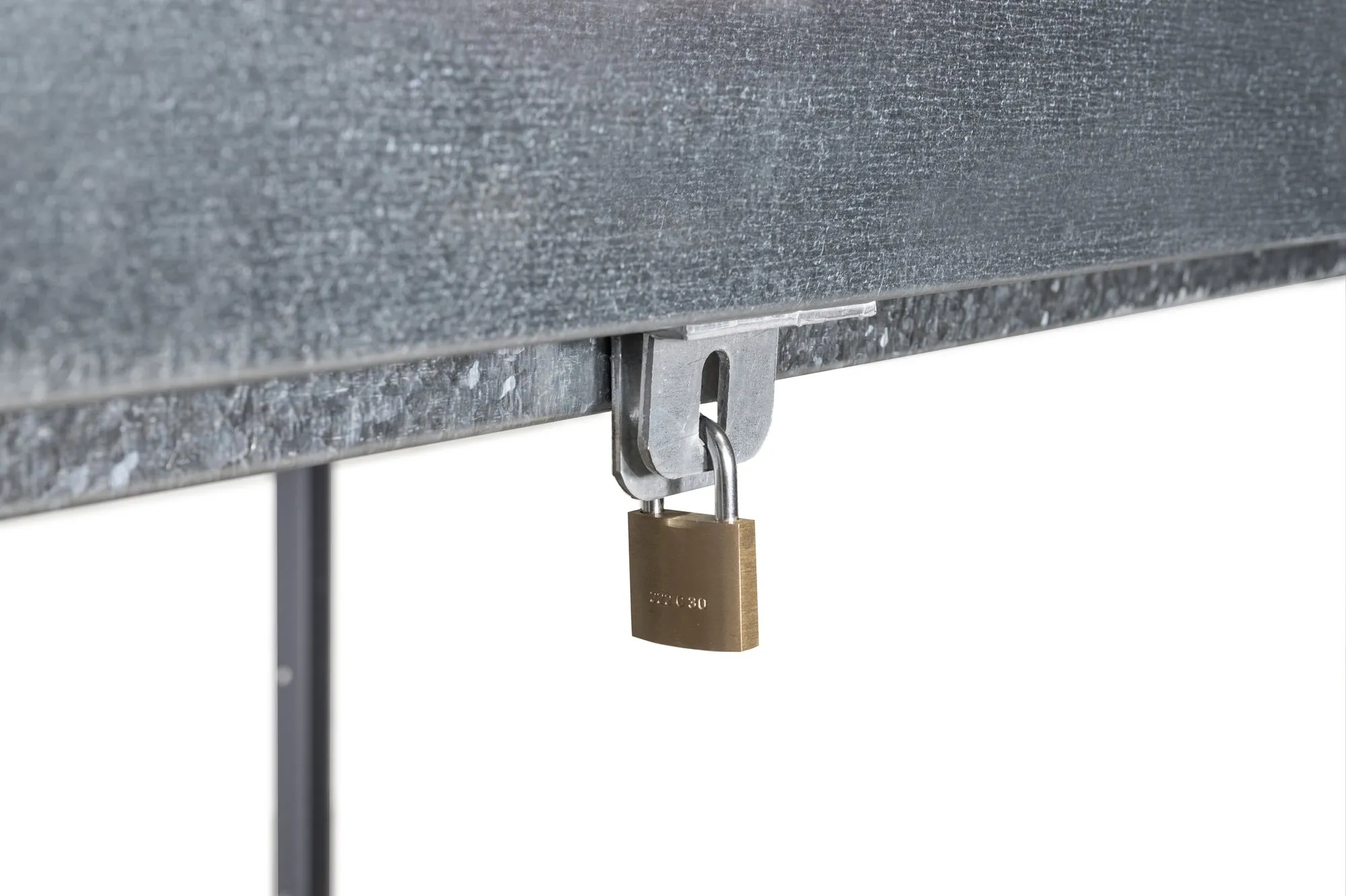

The eyelet under the worktop takes any standard padlock: lid closed, lock in place — plans and material stay secure in the box.

Proven and simple: the company chooses the lock, matching its own key system.

Any padlock fits.

CRANE LIFTING EYES

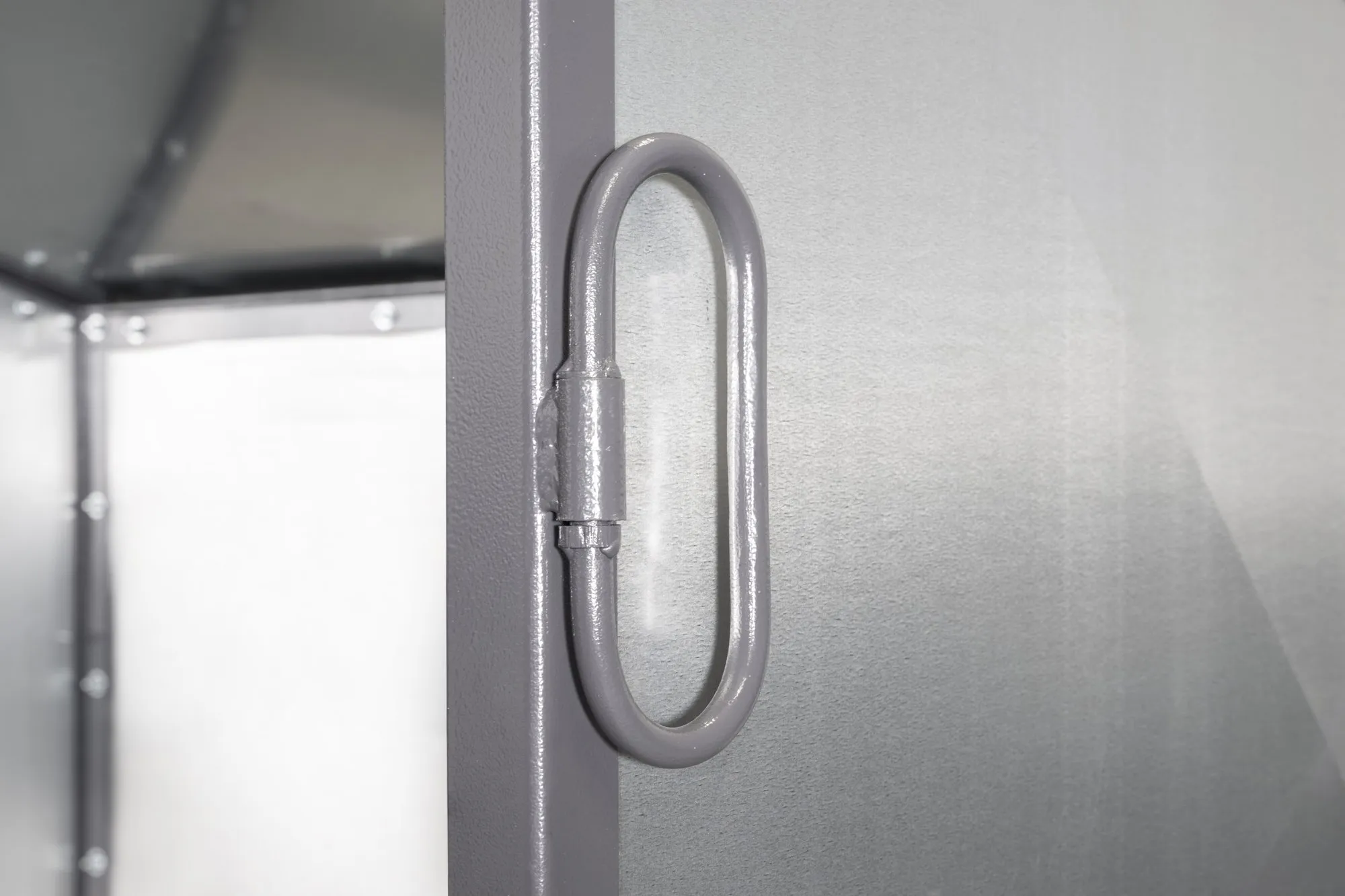

Four crane lifting eyes for moving by hook — folded out, ready; folded in, they lie flat against the wall.

Space-saving in storage, convenient when manoeuvring: the wall stays smooth.

Lying flat, quickly to hand.

Technical data

The large Plan Station on an open frame.

Feature	Value
Art. no.	22791
Worktop	for A0 drawings, up to 50 kg
Base	open steel frame
Locking	fully lockable (padlock)
Interior	side compartment for plans
Transport	4 fold-in crane lifting eyes
Material	steel — frame powder-coated, panels galvanized
Origin	Engineered in CH · Made in EU
