CONSTRUCTION · SITE EQUIPMENT
ALBAPlan Station 2
The lockable Plan Station with tool cabinet — a workstation for A0 plans, with the lid as a canopy.
Art.-Nr. 22792
- 01 Fully lockable with the new key lock — large tool cabinet; work surface and floor each rated up to 50 kg.
- 02 The lid becomes a canopy when open; the rear-wall window lets in light.
- 03 Large worktop for A0 drawings, internal side compartment for plans.
- 04 Stable thanks to wide foot plates with anti-sink protection.
- 05 Four fold-in crane lifting eyes — folded out for moving by hook, folded in they lie flat: space-saving and convenient.
- 06 Steel — frame powder-coated, panels galvanized. Engineered in CH · Made in EU.
Note: the images do not yet show the new locking system — updated photos to follow.

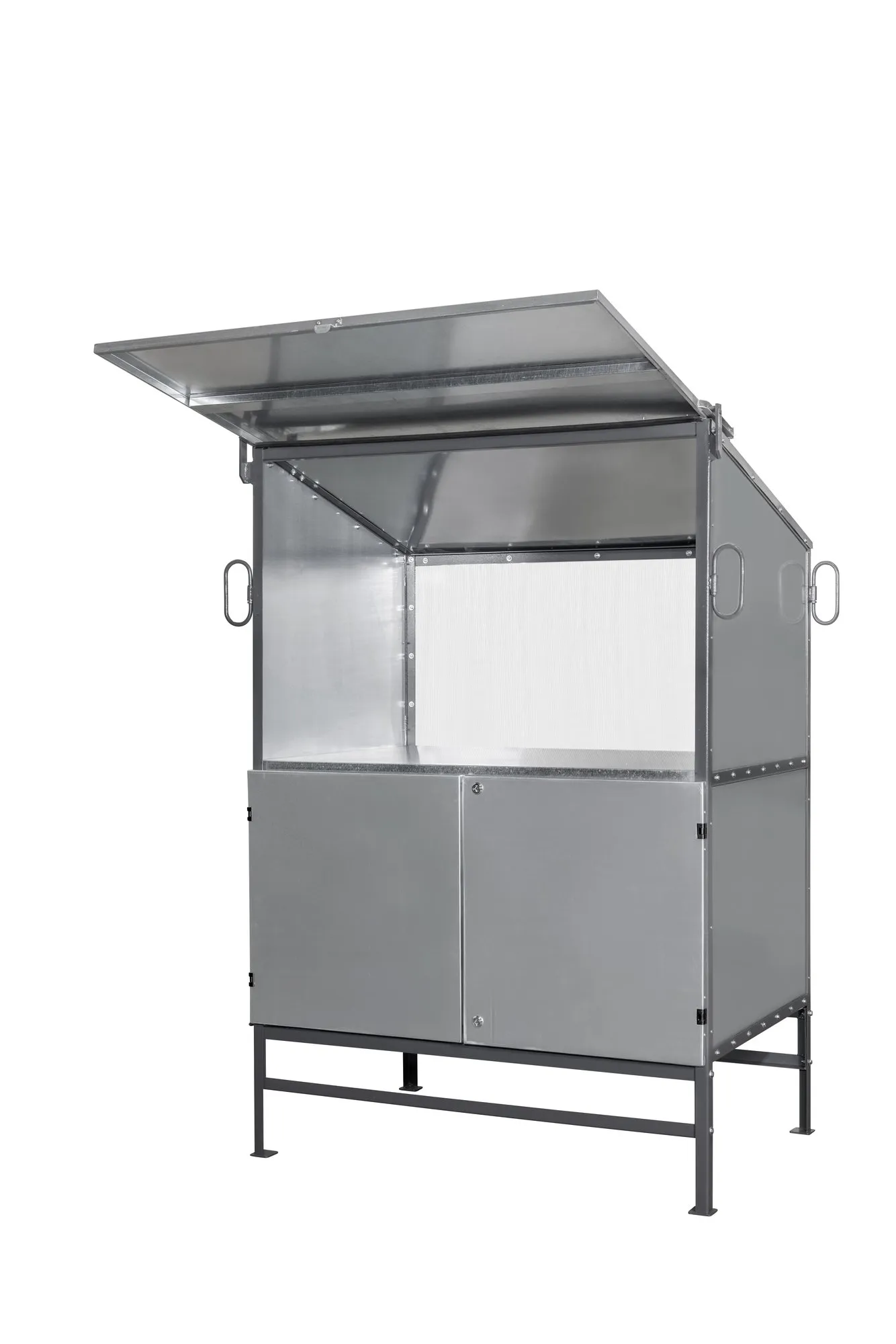

LID & LIGHT
Lid up — canopy ready.
When open, the lid folds up and becomes a canopy: work under cover, even when it drips.
The rear-wall window brings daylight onto the large A0 worktop.

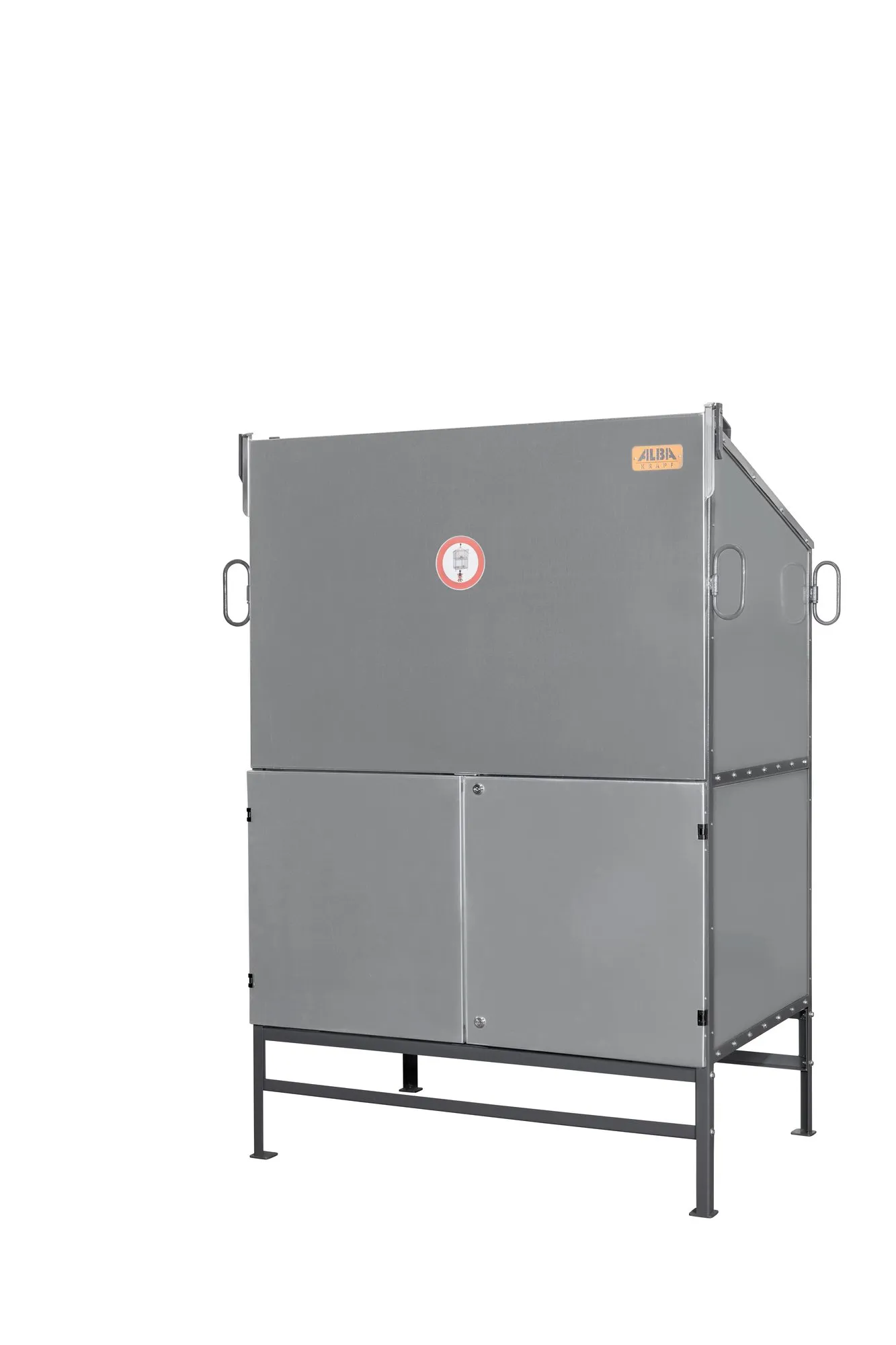

Open, a roof; closed, a box.

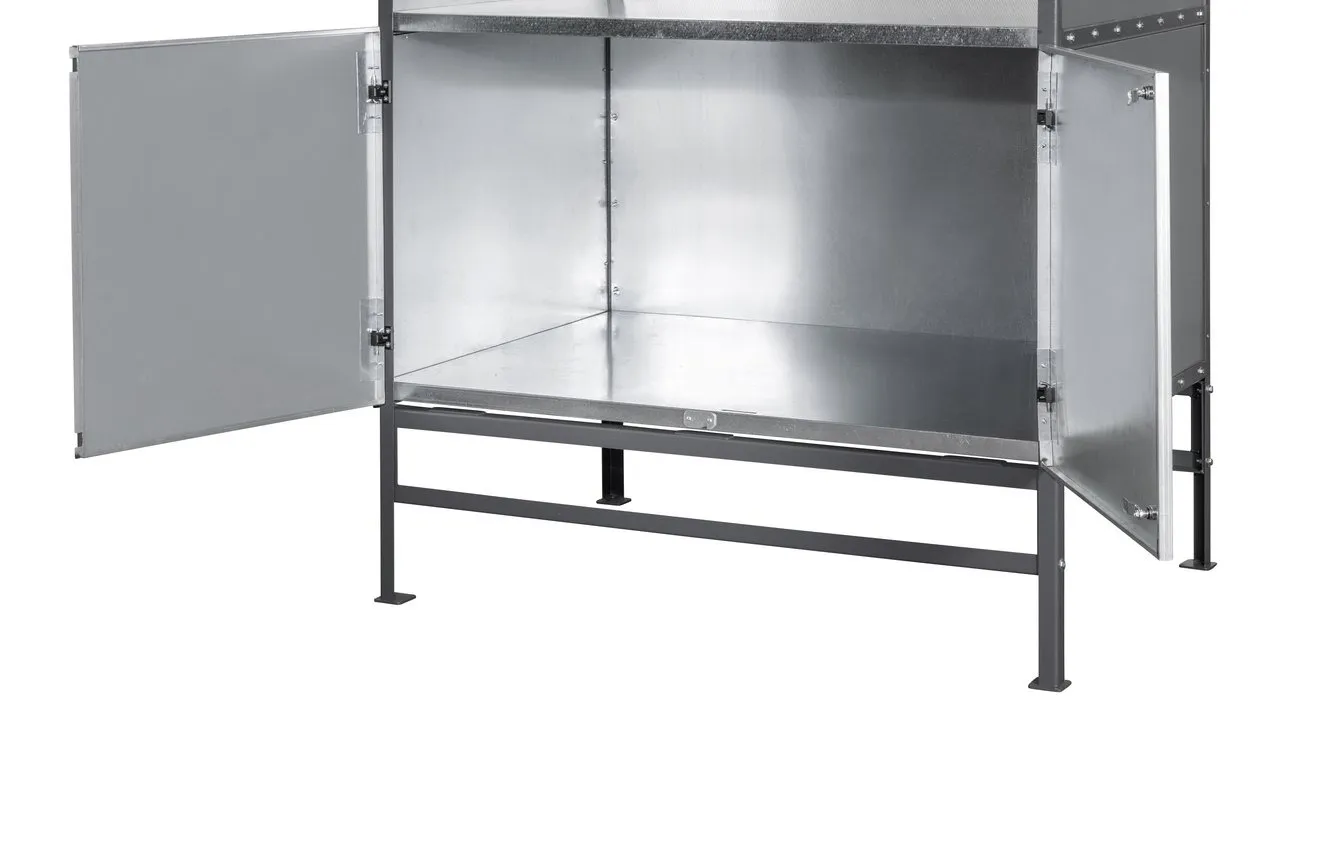

STORAGE
Tools in, locked up.
Beneath the worktop sits a large, lockable tool cabinet. Work surface and cabinet floor each carry up to 50 kg.
Everything in one place and safely stowed — empty it before relocating by crane.
Lockable tool cabinet.

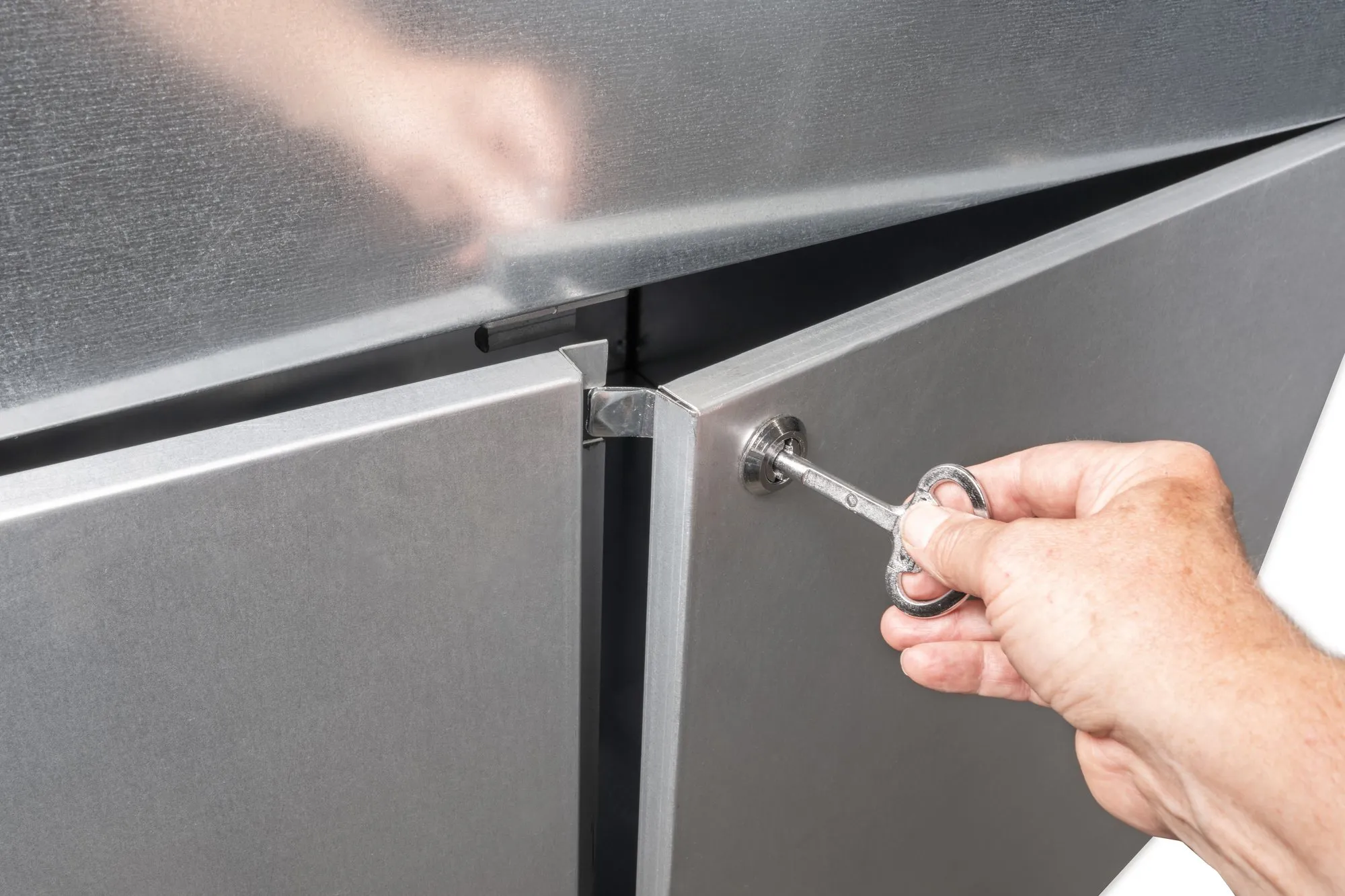

LOCKING
Key in. Locked.
The cabinet doors close with the new key lock: insert, turn, locked.
Tools and material stay behind steel doors — even over the weekend on site.
Insert. Turn. Locked.
CRANE LIFTING EYES
Fold out, hook on, relocate.
Four crane lifting eyes for moving by hook — folded out, ready; folded in, they lie flat against the wall.
Space-saving in storage, convenient when manoeuvring: the wall stays smooth.
Lying flat, quickly to hand.
Technical data
Technical data.
The large Plan Station with tool cabinet.
| Feature | Value |
|---|---|
| Art. no. | 22792 |
| Worktop | for A0 drawings |
| Storage | lockable tool cabinet; work surface + floor each up to 50 kg |
| Locking | fully lockable, new key lock |
| Interior | side compartment for plans |
| Transport | 4 fold-in crane lifting eyes |
| Material | steel — frame powder-coated, panels galvanized |
| Origin | Engineered in CH · Made in EU |
Documents
ALBA Plan Station 2 — everything to download.
Documents, instructions and technical data — as PDFs.
