CONSTRUCTION · LIFTING TOOLS
Formwork stripping barKuli
The big lever: 100 kg of applied force, up to 1700 kg lifted.
Art.-Nr. 10583
- 01 100 kg of applied force, up to 1700 kg lifted — a 17-fold force gain.
- 02 1400 mm lever: move heavy concrete elements, pallets and precast parts.
- 03 Forged and hardened special-steel head. Engineered in CH · Made in EU.
- 04 Nail claw at the front, nail slot inside — pull nails up to Ø 14 mm, even standing up.
- 05 Powder-coated, built for heavy continuous use.
Leverage
100 kilos become 1’700.
Slide the effort — and see what the lever makes of it. Pure lever mathematics.
≈ a full big bag (1 t)
Pure lever mathematics: a long travel at the grip, a short, powerful movement at the tip. Longer handle = bigger lever, more lifting force from the same effort.
APPLICATIONS
The Kuli for everything.

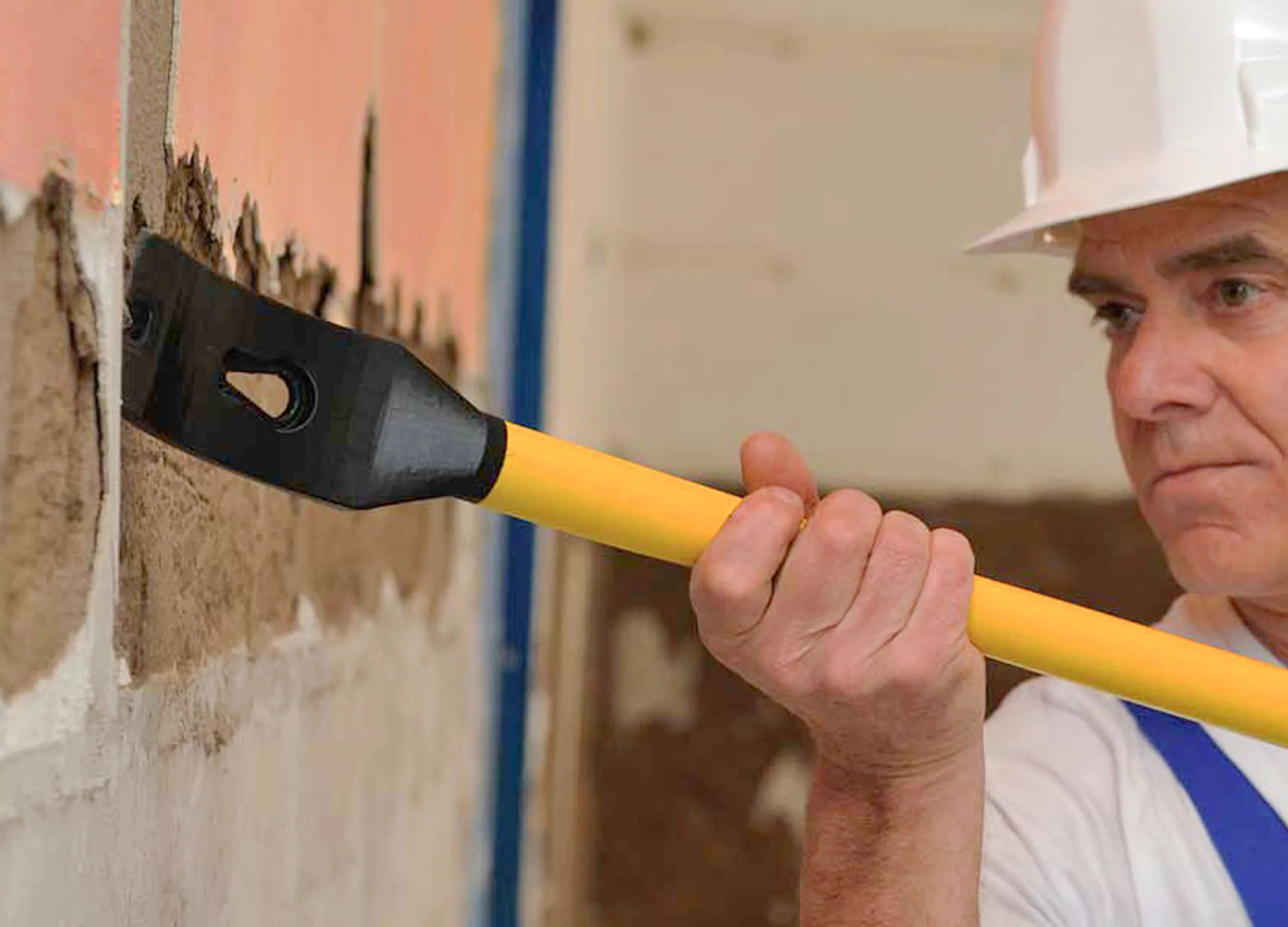

Strip and dismantle formwork, de-nail and clean boards and shuttering panels, free floor coverings and beams — right up to the flat roof.

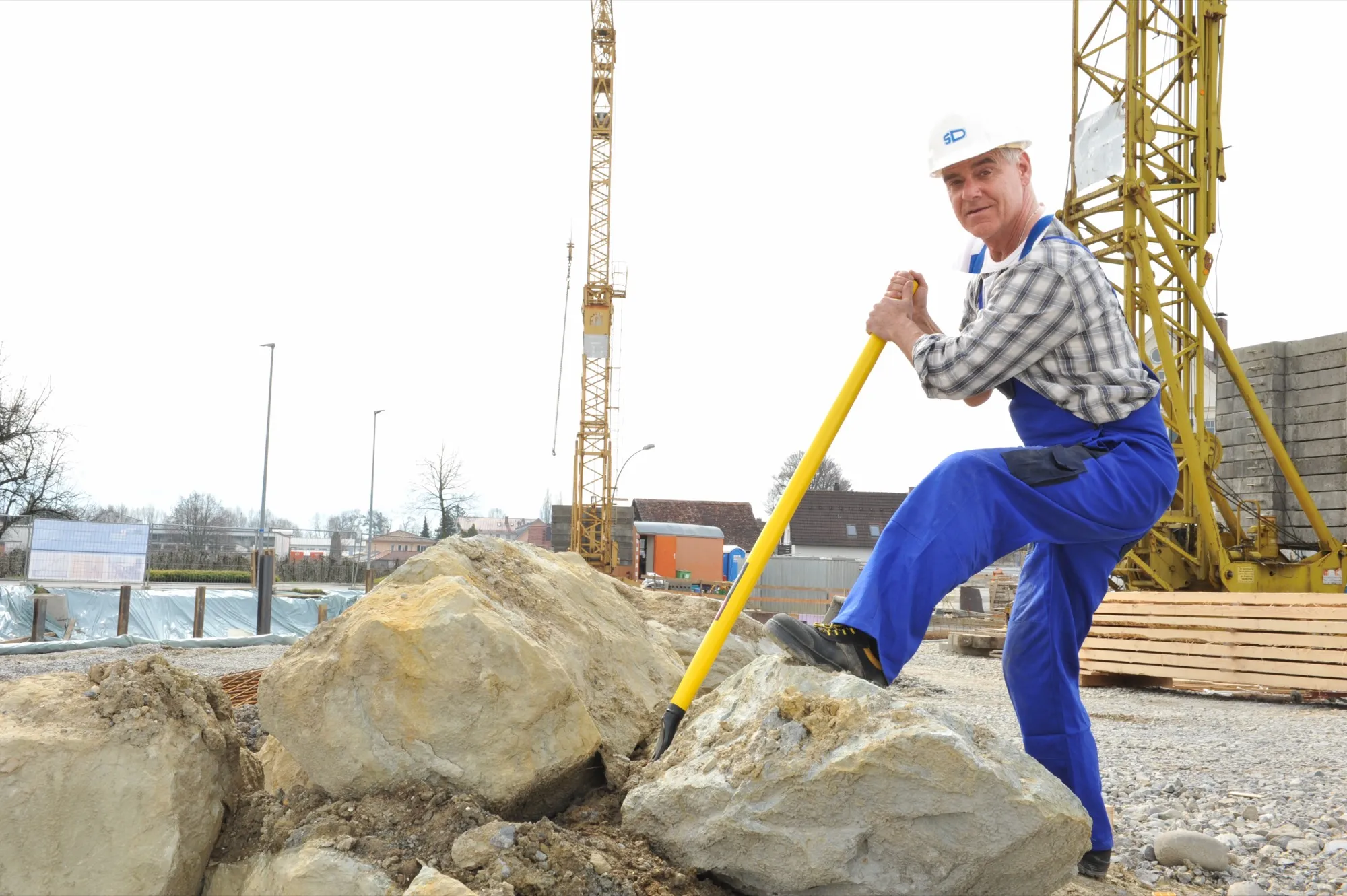

Move heavy elements, pallets and precast concrete parts, place stones in garden and landscape construction, demolition, pulling nails: one tool for the entire structural shell.
One lever, many tasks.

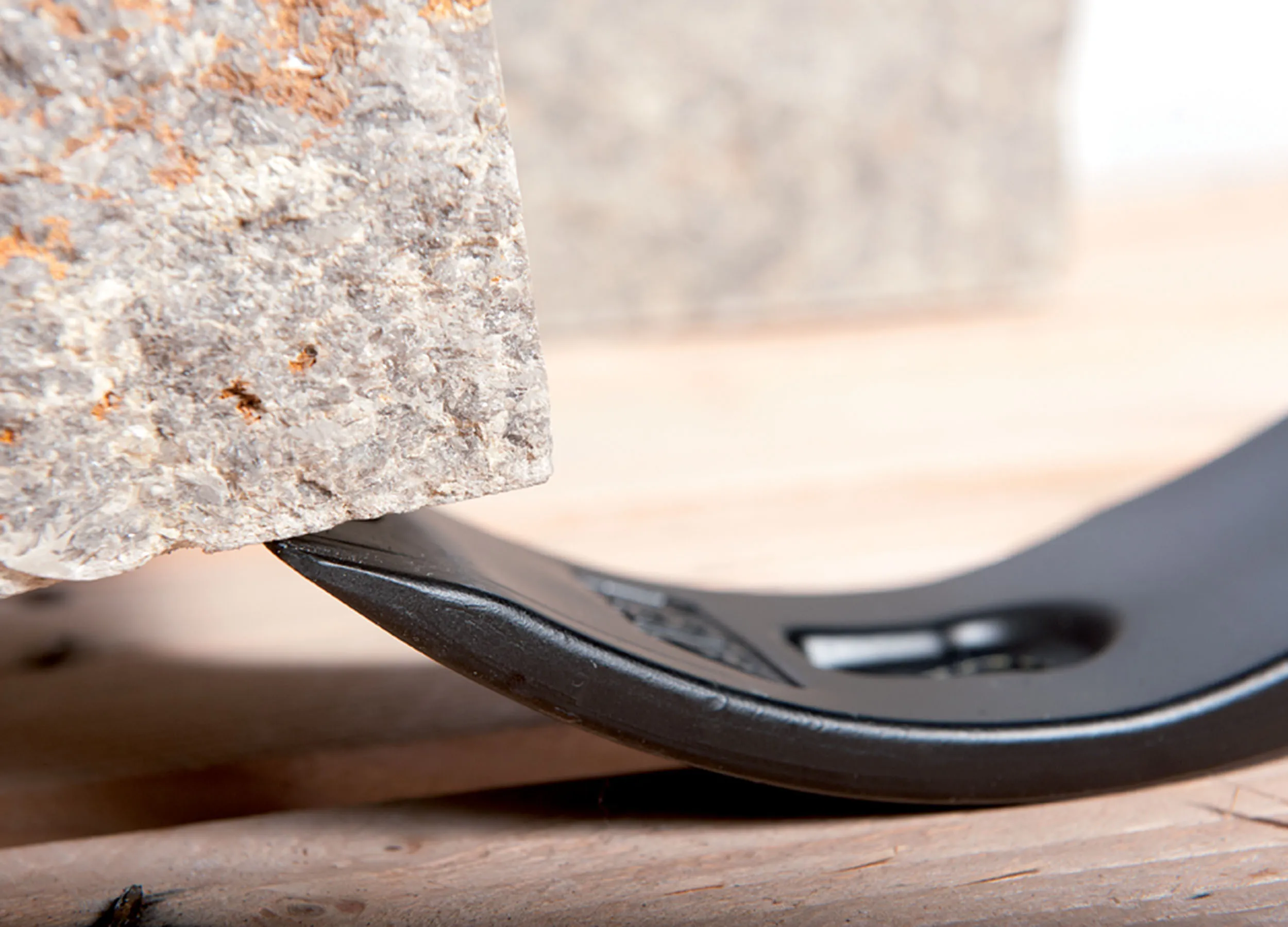

POSITIONING
Positioned to the millimetre.
The wide, sharply forged front edge slides under heavy elements and sets them down with control — stone slabs, concrete parts, kerbstones.
High lifting power with little risk to edges and surfaces.
Power you can meter.

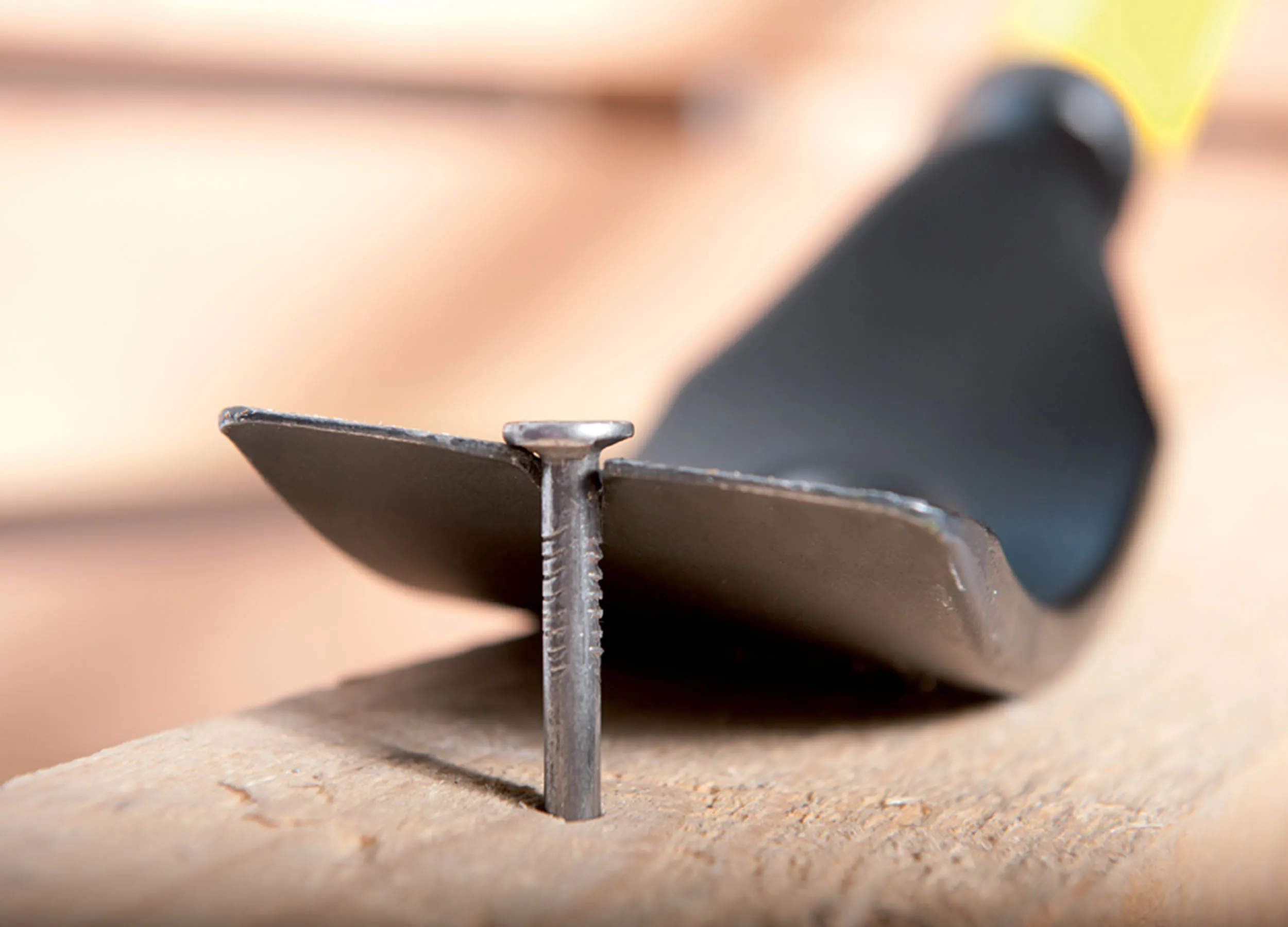

NAIL CLAW
Nail heads lifted cleanly.
The hardened nail claw on the front edge grips nail heads and lifts them precisely — the first move towards clean pulling.
Precision instead of brute force.

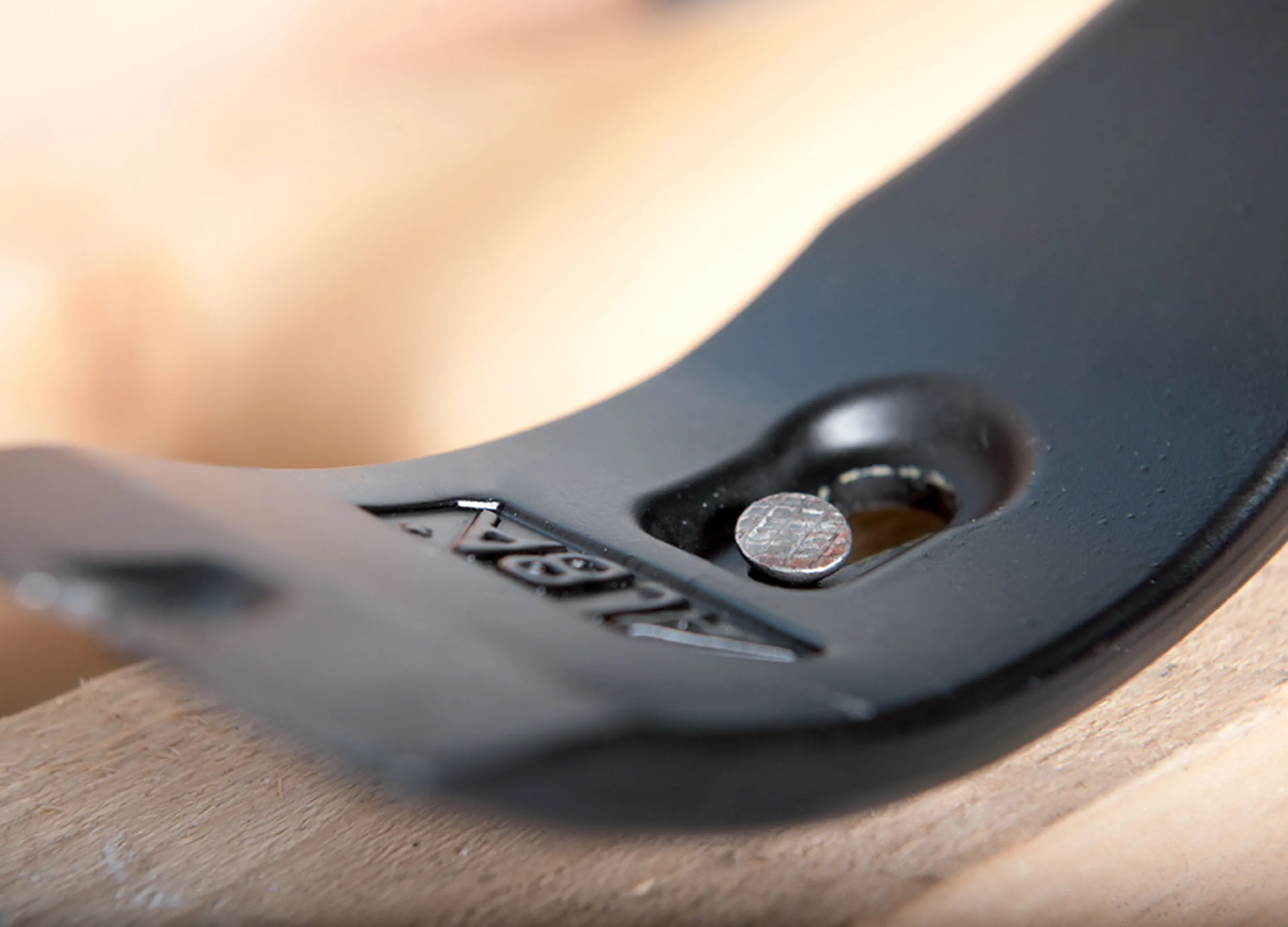

NAIL SLOT
Pull nails — standing, easy on the back.
The inner nail slot grips nail heads up to Ø 14 mm. Pulled standing up, using the long lever of the handle — that spares the back.
Work upright instead of bending down.

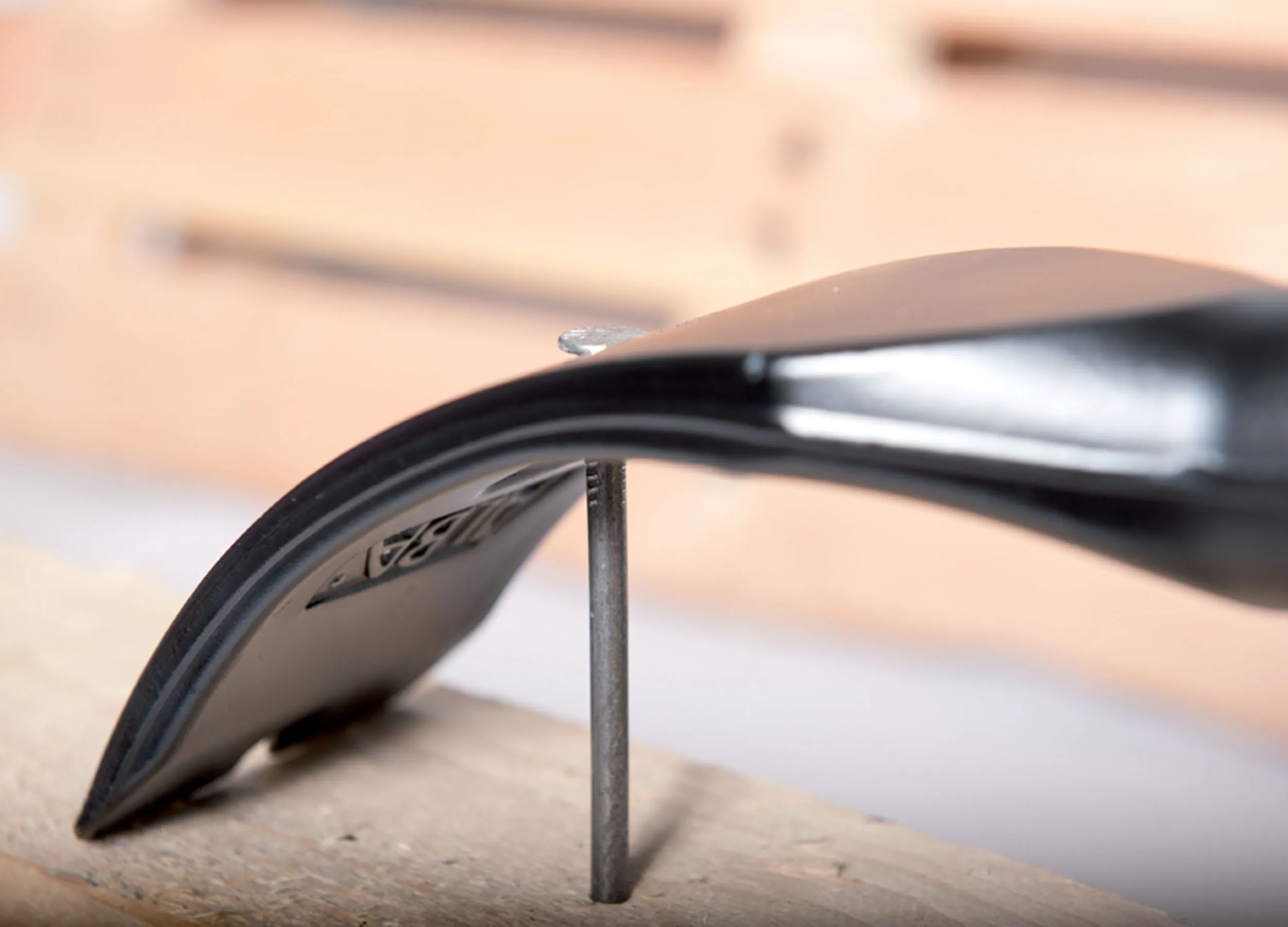

LONG NAILS
Even the long ones come out.
Turn the tool over: using the curved back, even long nails are drawn out step by step with little force.
One tool, many techniques.

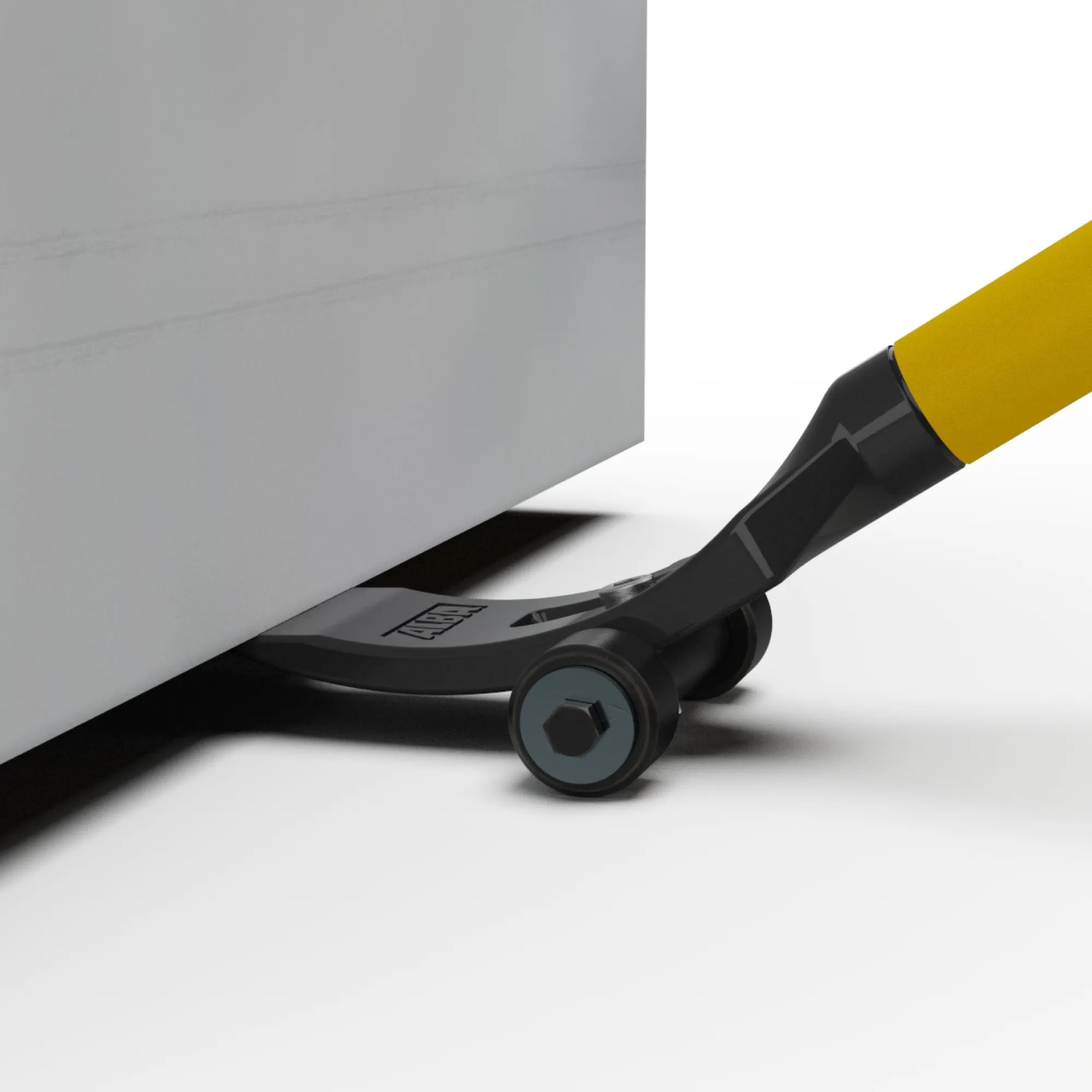

EXTENSION · ACCESSORY
Kuli lifts. KuliGo rolls.
The KuliGo screws onto the Kuli head in seconds (M10) and turns the lever into a roller: lift the element around 95 mm — and roll it away instead of hauling it. Formwork panels, concrete elements, precast parts up to 1700 kg; the attachment itself weighs just 0.8 kg.
- up to 1700 kg
- rollable load
- approx. 95 mm
- lift height
- 0.8 kg
- attachment weight
- M10
- screw-on
Art.-Nr. 10593
Technical data
Technical data.
The largest formwork stripping bar in the range.
| Feature | Value |
|---|---|
| Art. no. | 10583 |
| Tool head | 200 × 75 mm |
| Overall length | 1400 mm |
| Weight | 5.3 kg |
| Operating force | max. 100 kg |
| Lifting capacity | up to 1700 kg |
| Nail head | up to Ø 14 mm |
| Finish | powder-coated |
| Material | special steel, forged & hardened |
| Origin | Engineered in CH · Made in EU |
Documents
Formwork stripping bar Kuli — everything to download.
Documents, instructions and technical data — as PDFs.
