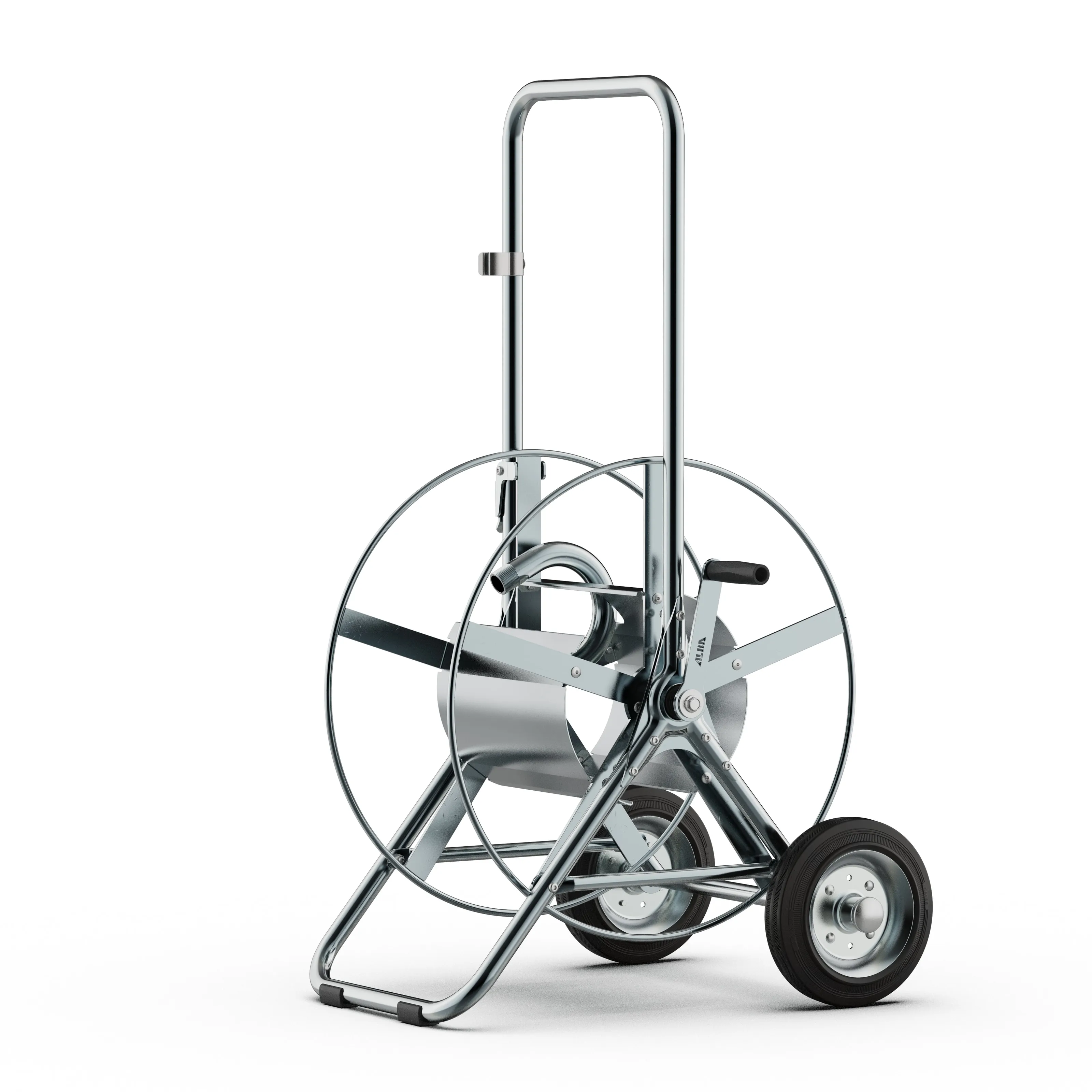

HOSE CART · GARDEN & CONSTRUCTION
ForeverSeries II
The strongest model in the compact range.
Art.-Nr. 11454
- 01 Triangular frame plus cross brace — reinforced for intensive continuous use.
- 02 Full 3/4″ water flow-through — continuous through the entire unit. Plenty of water in little time.
- 03 Ø 200 mm solid rubber wheels with steel rims — robust and smooth-running.
- 04 Stainless comfort connection bend — for a kink-free water feed.
- 05 Bolted drum plates — service-friendly, long-lasting.
- 06 Drum lock + nozzle holder on the push bar.
- 07 Reinforced star bracket with 6-bolt fixing, galvanically zinc-plated all-steel.
- 08 Brass rotating water connector G 3/4", ball-bearing-mounted, pressure-rated up to 25 bar — identical to the larger models.
- 09 5-year functional warranty · 10-year spare parts availability.

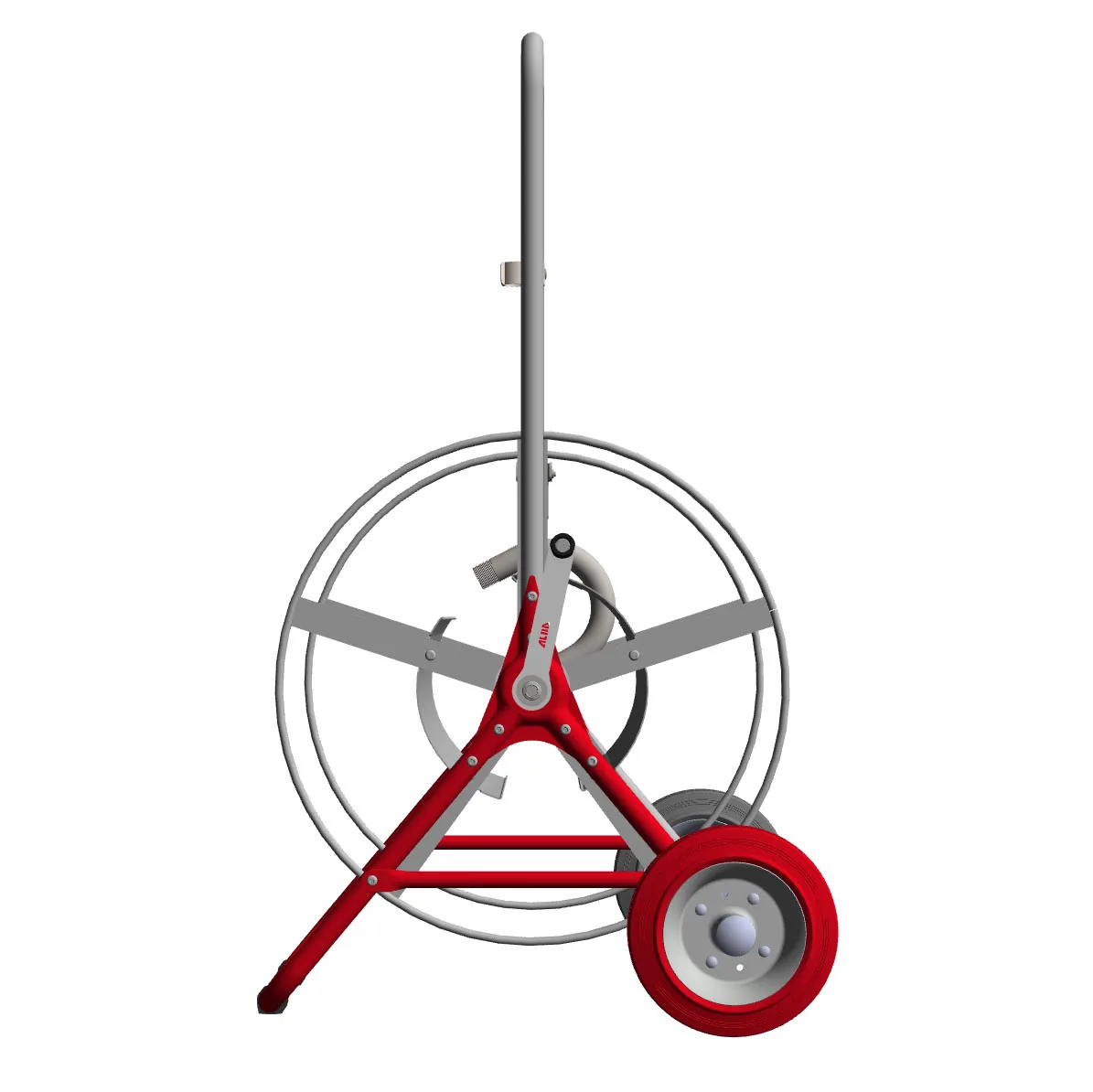

CONSTRUCTION

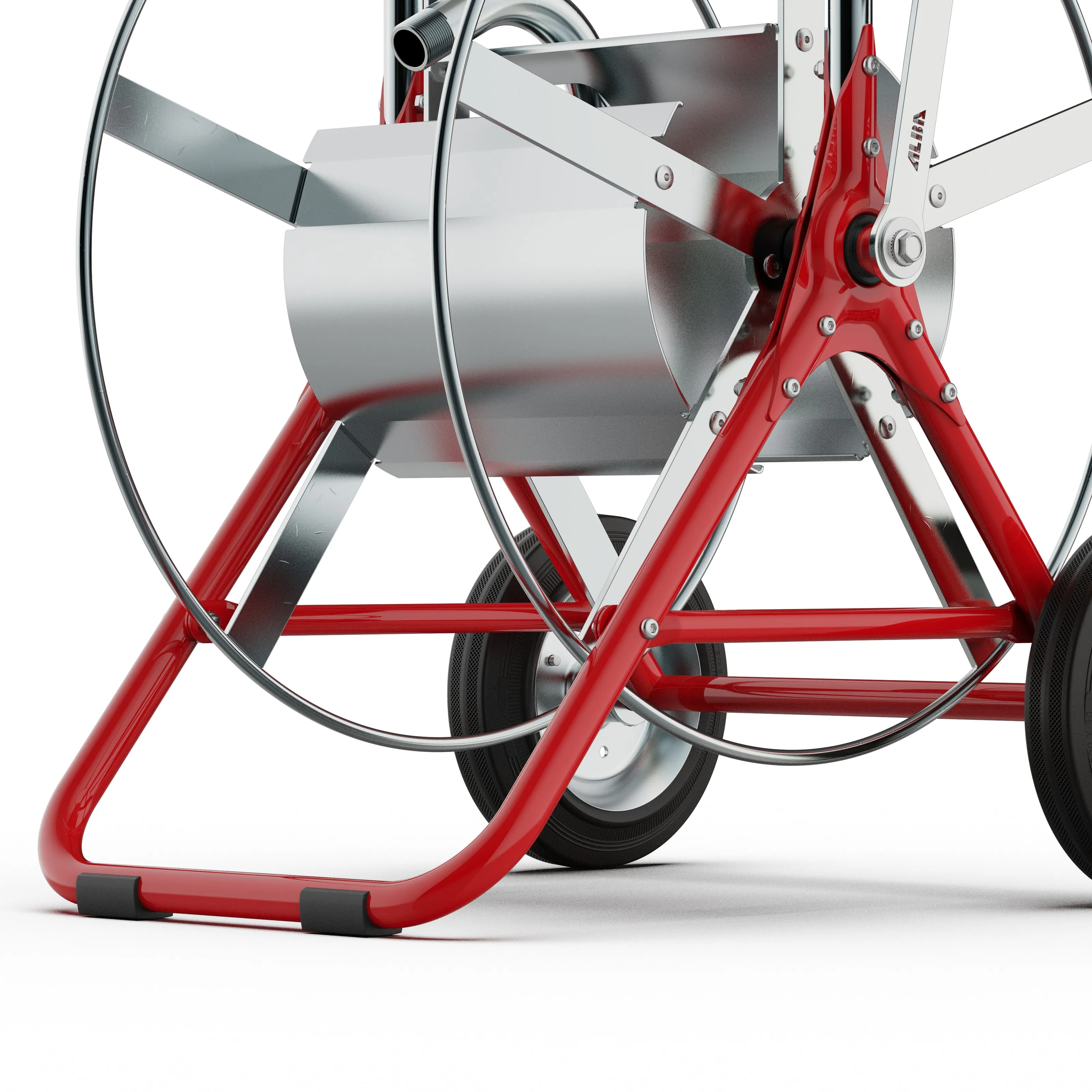

Triangular frame plus cross brace.
Reinforced steel construction: triangular frame with a continuous lower cross brace — closes the triangle and channels loads cleanly into the frame.
Reinforced star bracket with 6-bolt fixing — dimensioned for intensive continuous use.
Stands. Holds. Lasts.
WHEELS

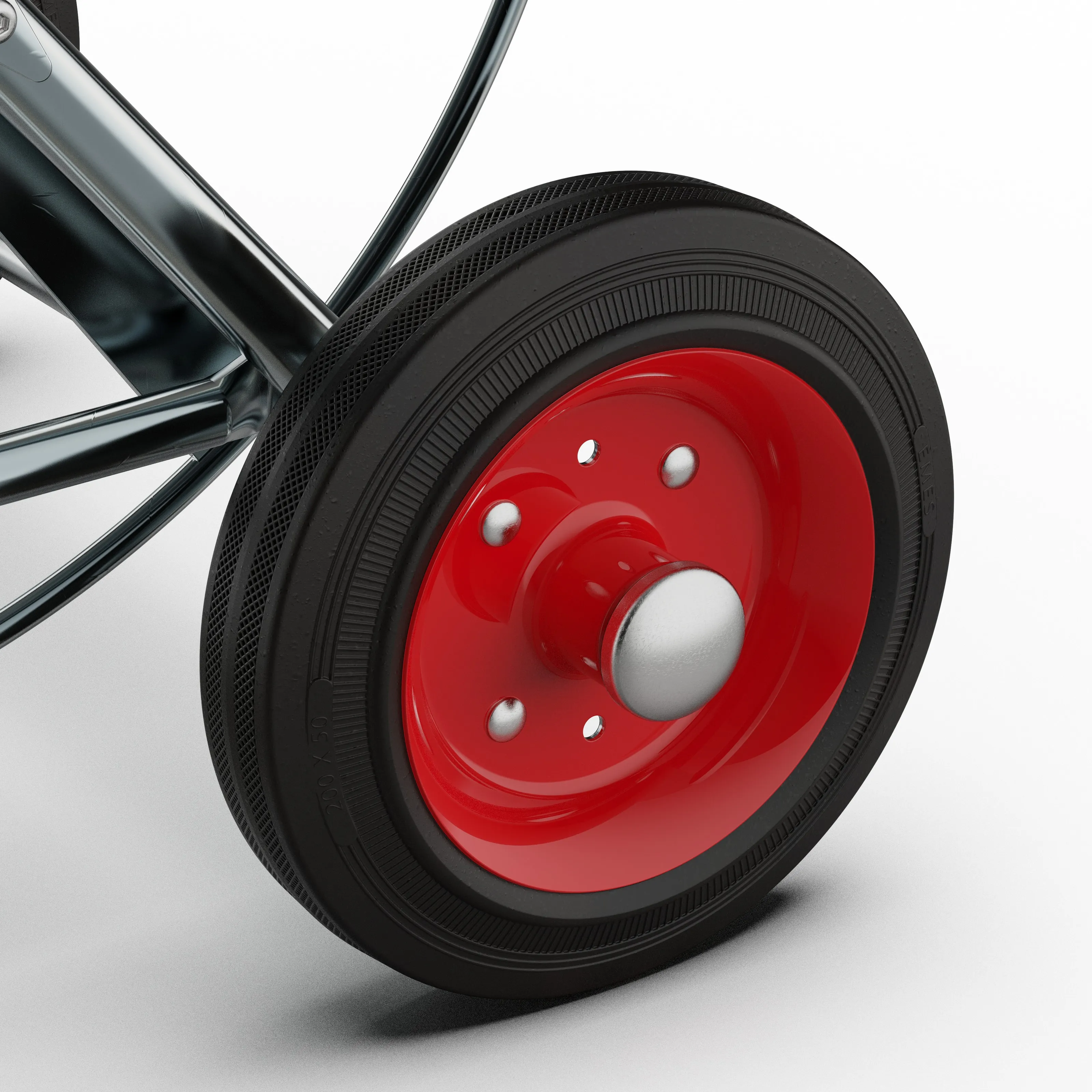

200 mm solid rubber with steel rim.
Ø 200 mm solid rubber wheels with steel rims — smooth running, high load capacity and secure footing, even on uneven ground.
Robustly built for continuous use.
Wheels that carry where it gets heavy.
WATER ROUTING
Comfort connection at 3/4″.
Stainless comfort connection bend with kink protection right at the water connection.
Full 3/4″ water flow-through — all the way through the cart: full pressure at the nozzle, shorter watering time. Pressure-rated up to 25 bar.
Kink-free. Full pressure.
DRUM

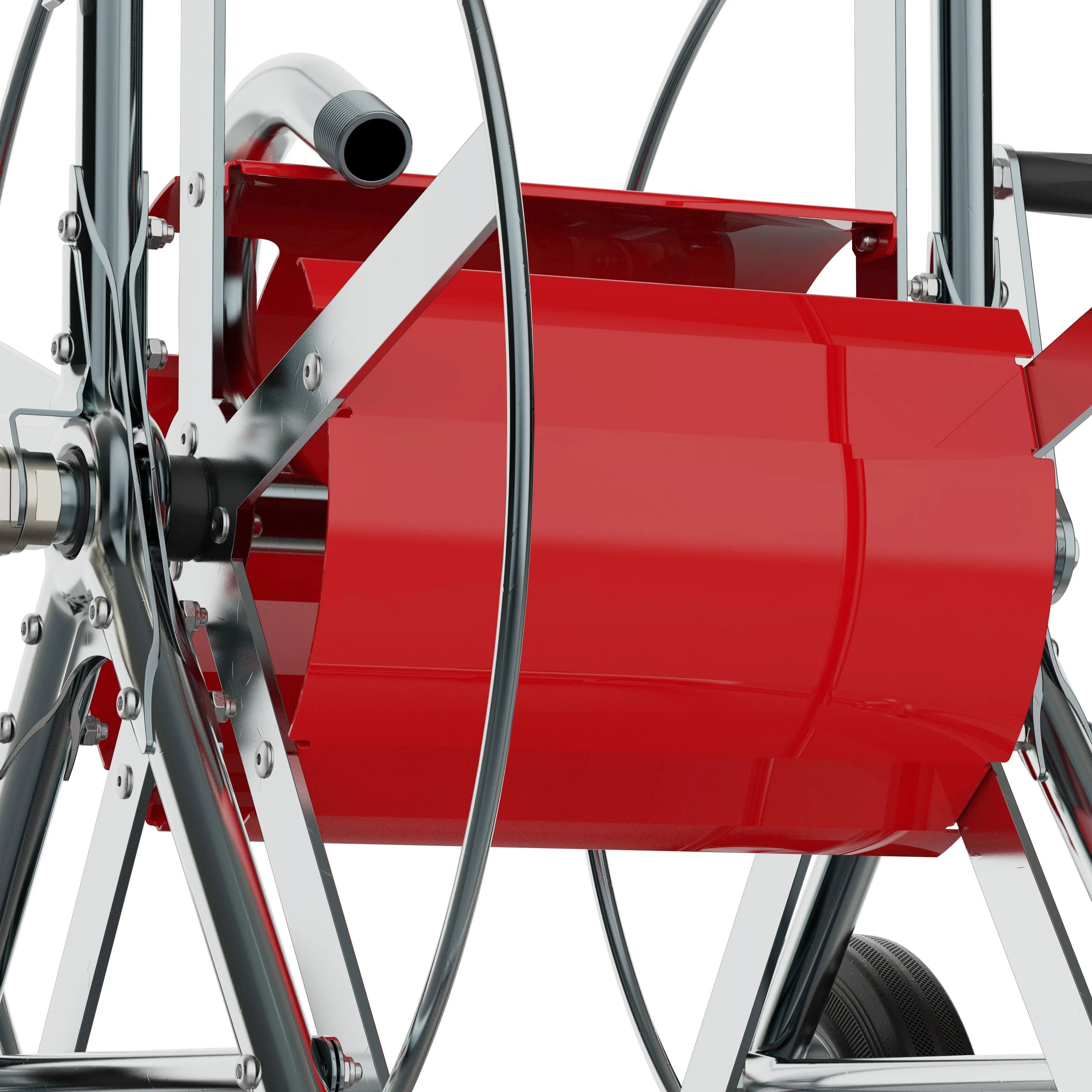

Bolted drum plates.
The drum plates are bolted rather than riveted — service-friendly and long-lasting.
A continuous drum plate instead of thin spokes prevents the hose from kinking as it winds on — even with a full drum.
Service-friendly. Gentle on the hose.
DRUM LOCK

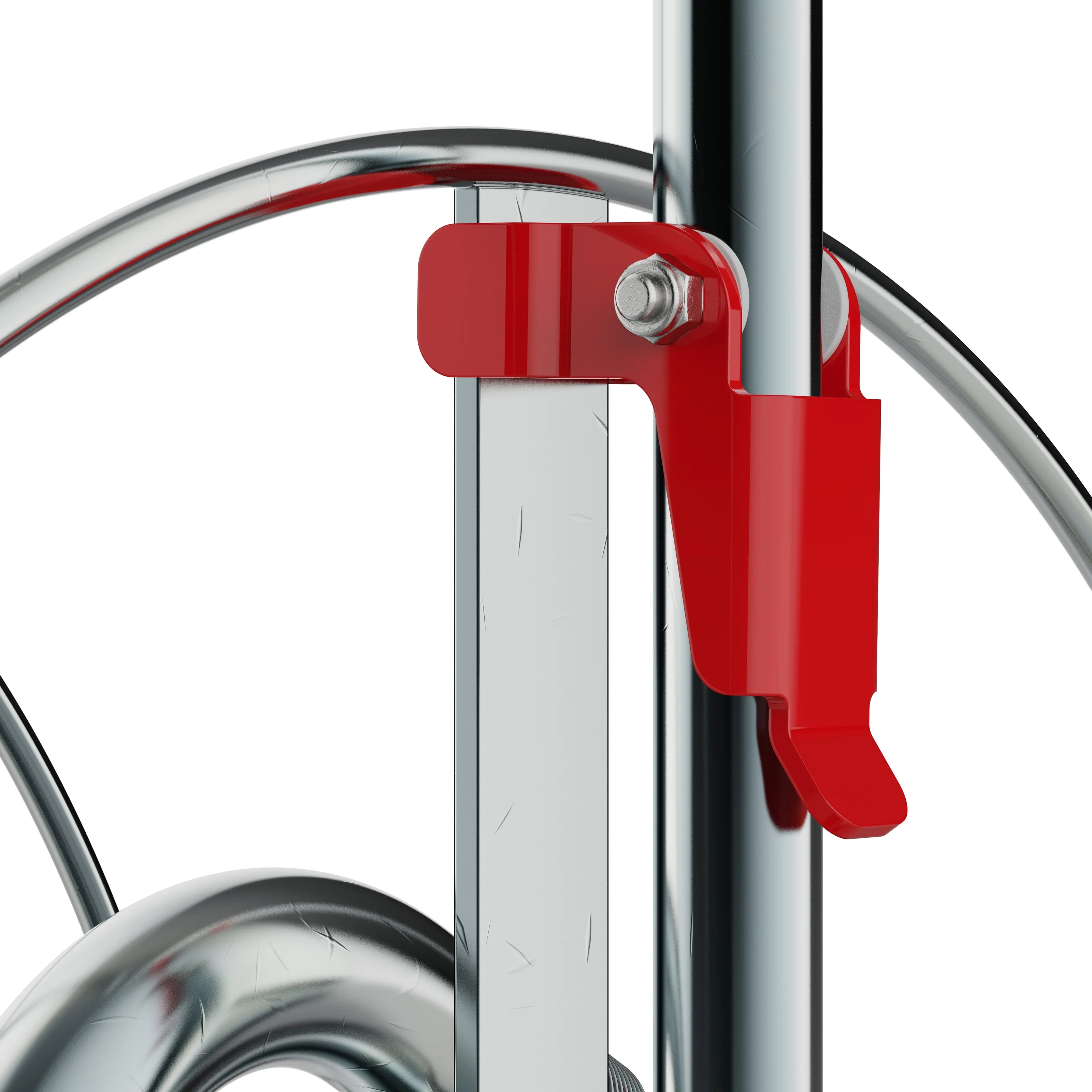

Locked for transport.
A secure drum lock holds the drum in place during transport.
The hose stays neatly wound, even when the cart is pushed over gravel, stairs or ramps. Click in, go, arrive.
Securely locked. Cleanly transported.
NOZZLE HOLDER

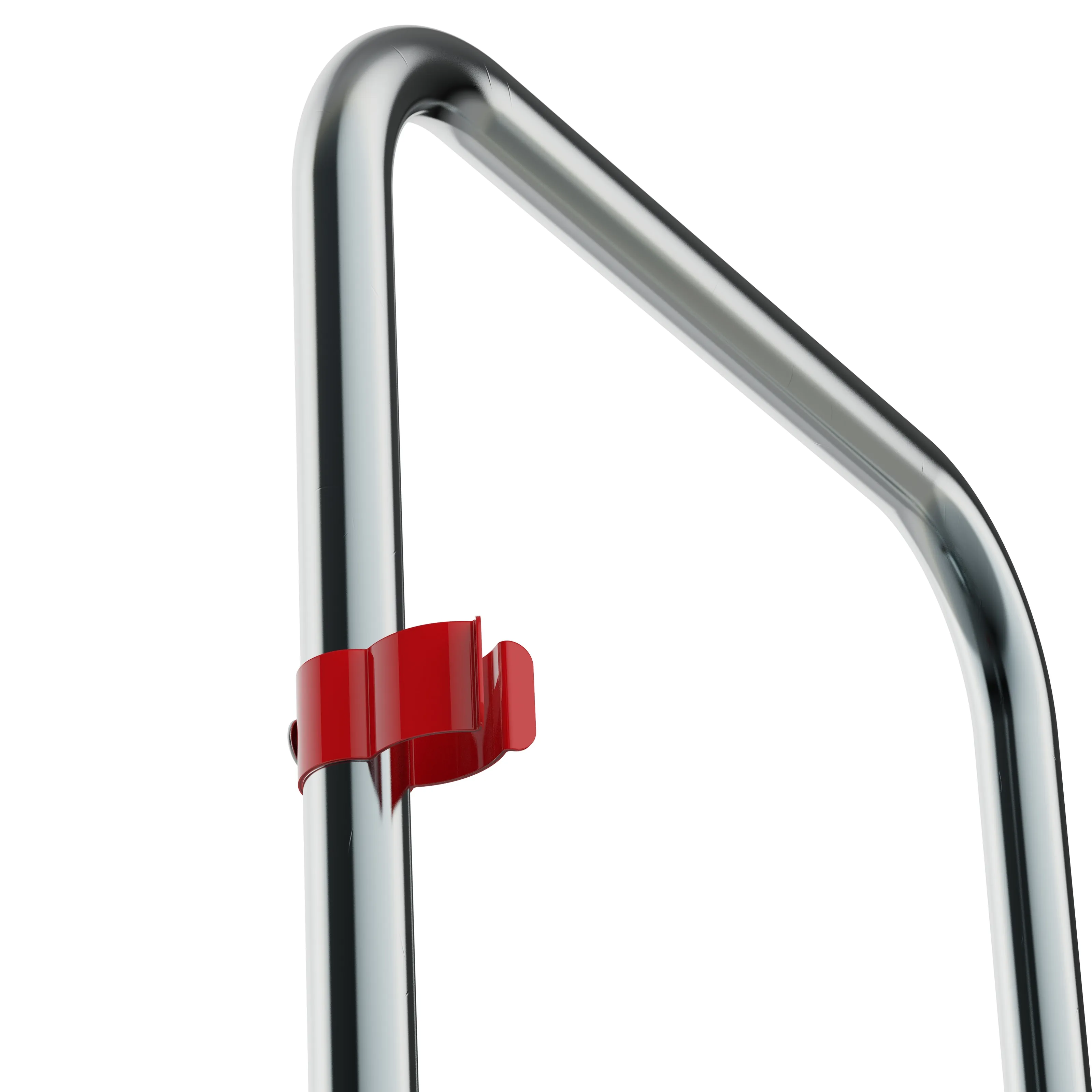

Clicked in. Done.
The quick clamp on the push bar holds the spray head or nozzle securely during transport.
One press and the tool is seated — quickly out of the holder, quickly back in.
An everyday detail that saves time.
Technical data
Fits every hose.
Common diameters — depending on application and desired reach.
| Diameter | Capacity |
|---|---|
| Ø 13 mm (1/2") | 100 m |
| Ø 16 mm (5/8") | 80 m |
| Ø 19 mm (3/4") | 50 m |
Documents
Forever Series II — everything to download.
Documents, instructions and technical data — as PDFs.
