HOSE CART · CONSTRUCTION · GARDEN · PROFESSIONAL
ProfiSeries II
For demanding professional use, 1″ water flow-through, hot-dip galvanized.
Art.-Nr. 11529 (assembled) / 11530 (kit)
- 01 Full 1″ water flow-through — all the way through the entire cart. Plenty of water in a short time.

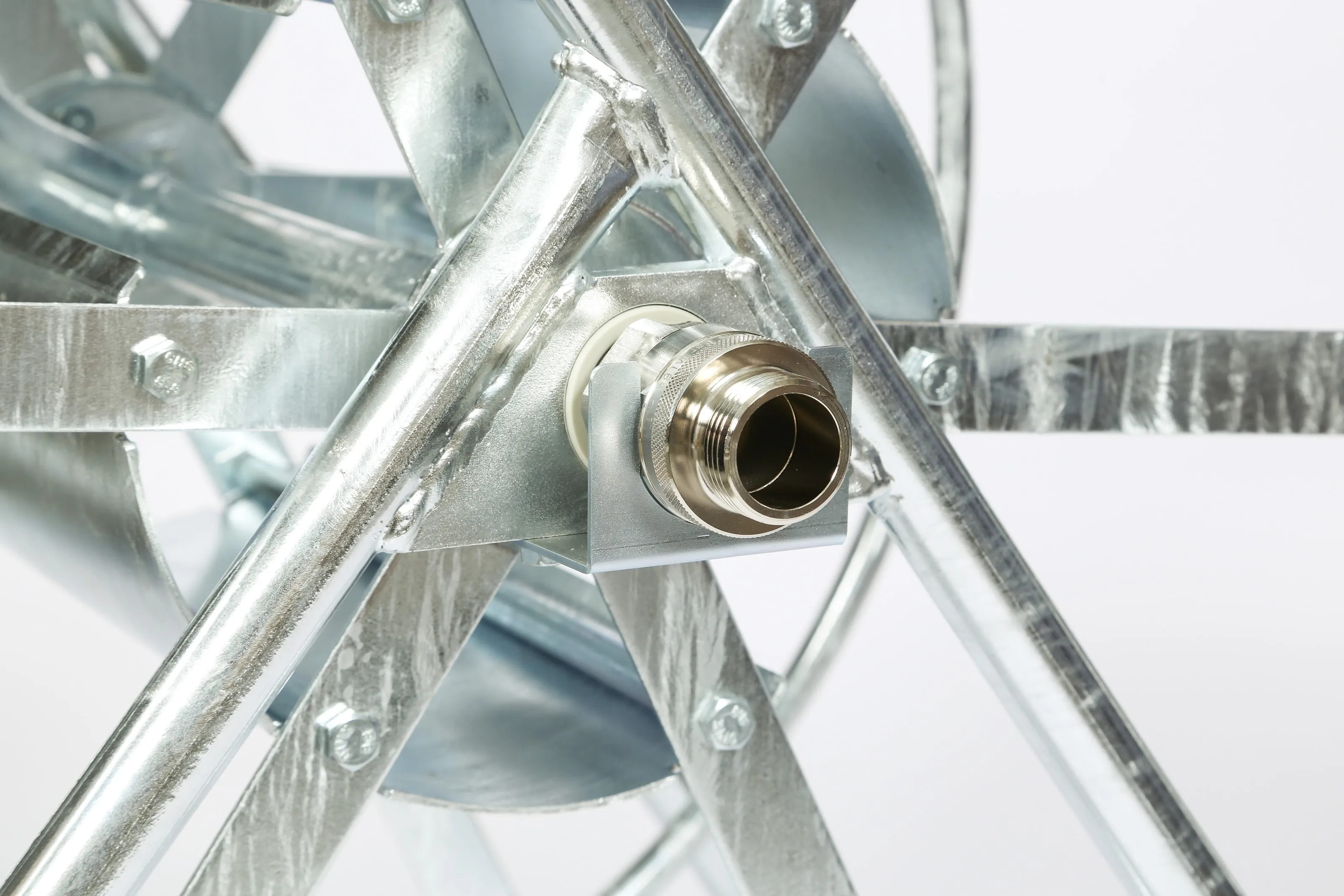

- 02 1″ brass rotating water connector, nickel-plated, ball-bearing-mounted, triple-sealed — industrial standard.
- 03 Hot-dip galvanized — for the toughest continuous use on the building site and in industry.
- 04 Reinforced triangular frame, welded, with closed bottom brace.
- 05 Puncture-proof heavy-duty wheels Ø 260 mm PU with steel rims — pressure-resistant throughout.
- 06 Stronger crank with 185 mm lever — saves effort with long hoses.
- 07 Drum brake via a central screw — drum held in place when unwinding.
- 08 5-year functional warranty · 10-year spare parts availability.
- 09 Also available as a kit (Art. 11530) — tool included, packed pallet-optimised.
WATER FLOW-THROUGH
1 inch throughout. Full flow.
A full 1-inch cross-section the whole way — through the comfort connection bend, drum and rotating water connector. More water per second than the 3/4″ models.
Water cannot be compressed — every narrowing along the way costs flow. That is why the cross-section stays constant here: plenty of water in a short time, full pressure at the nozzle.
Nickel-plated brass, triple-sealed — industrial standard for continuous use under pressure.
Full cross-section. Full delivery rate.

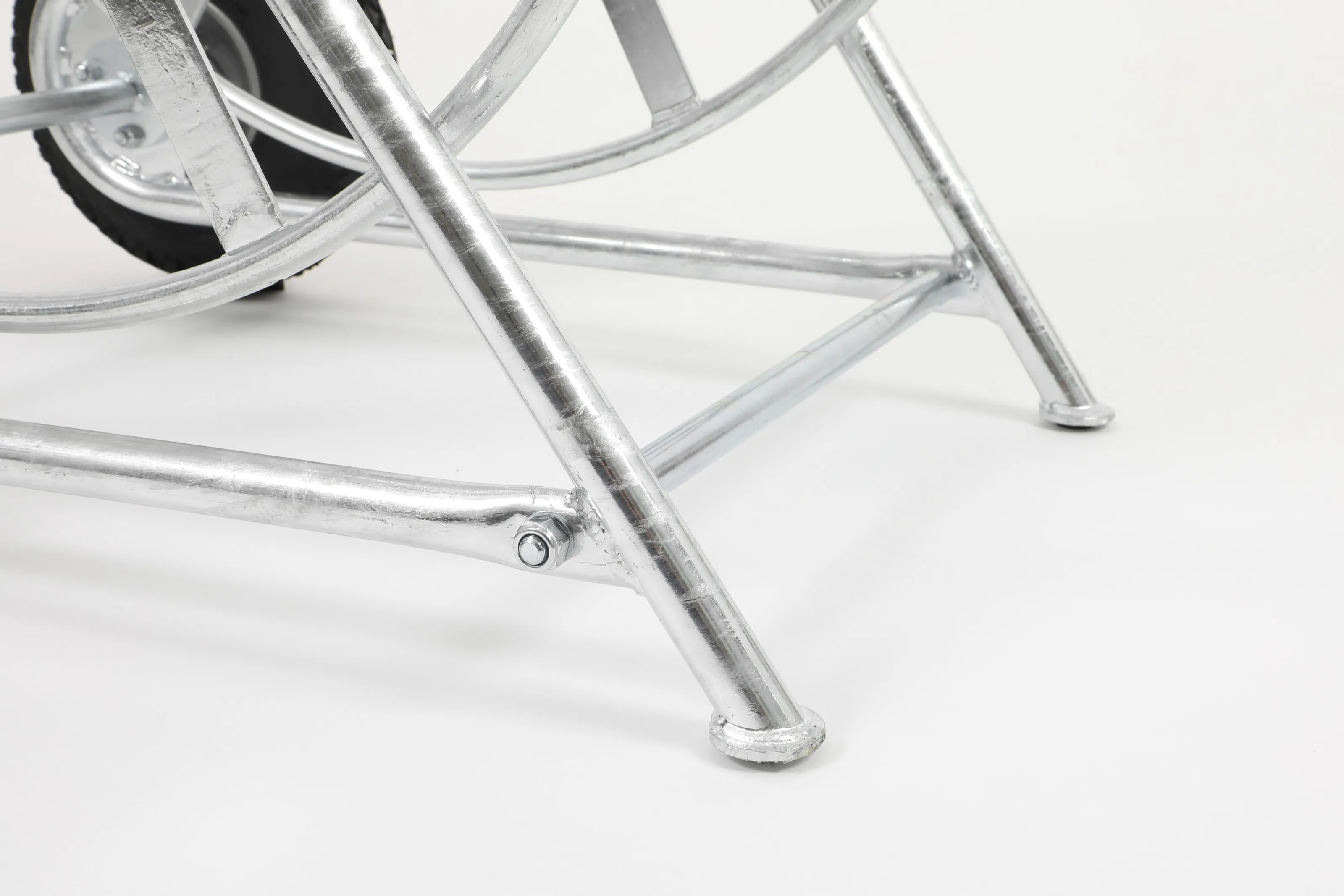

FRAME & GALVANIZING
Welded. Hot-dip galvanized.
Reinforced triangular frame with closed bottom brace, fully welded rather than bolted — maximum torsional rigidity for professional continuous-load use.
Hot-dip galvanized — thicker, more durable corrosion protection than the galvanic zinc plating of the garden models. For the building site and industry.
One weld seam, one piece of steel.

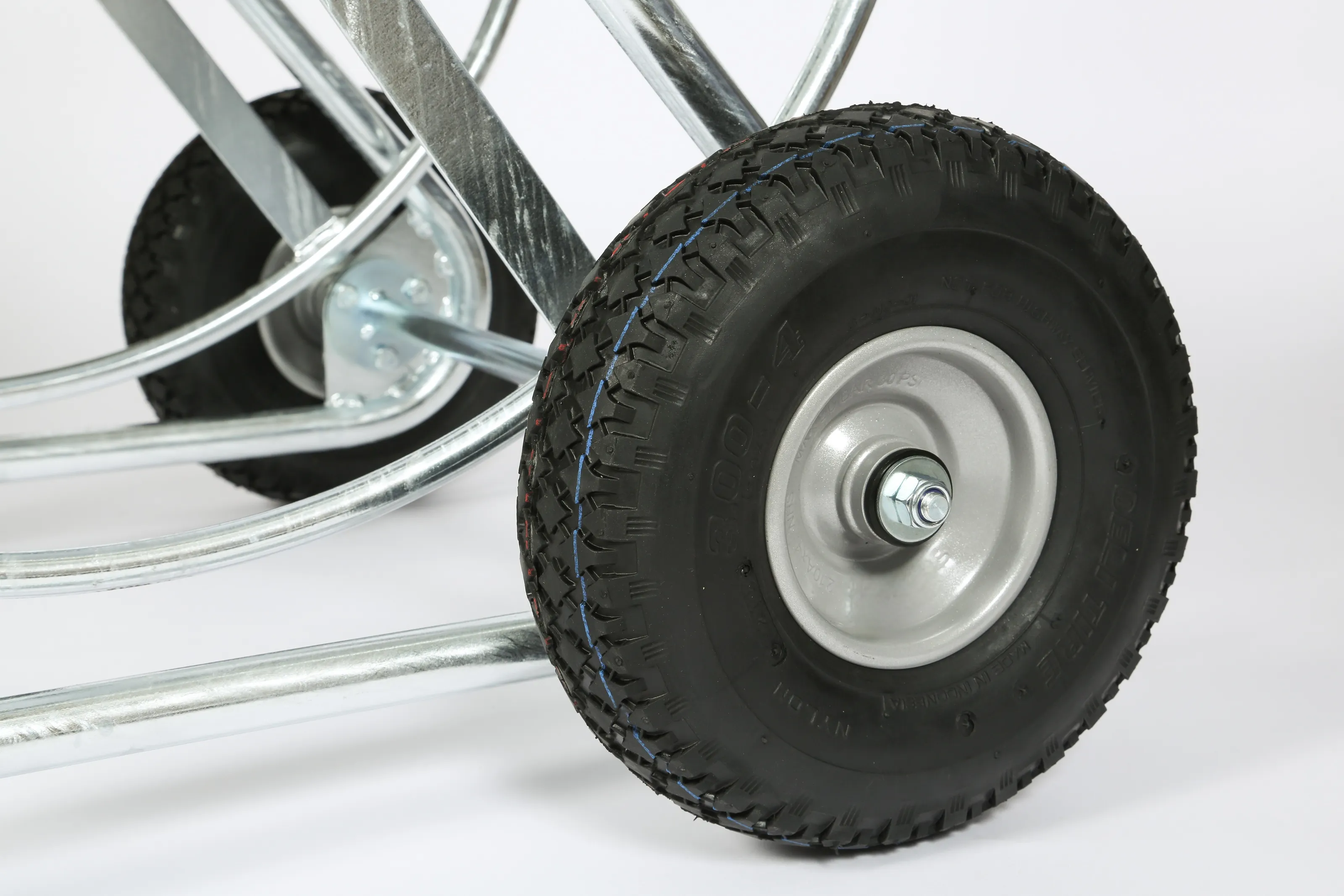

WHEELS
Puncture-proof. Built for heavy loads.
Puncture-proof heavy-duty wheels Ø 260 mm PU with steel rim — generously sized for sure running on gravel, uneven ground and on the building site.
Steel rim instead of plastic — no embrittlement, durable even under standing loads and frost.
Big. Steel. Continuous load.

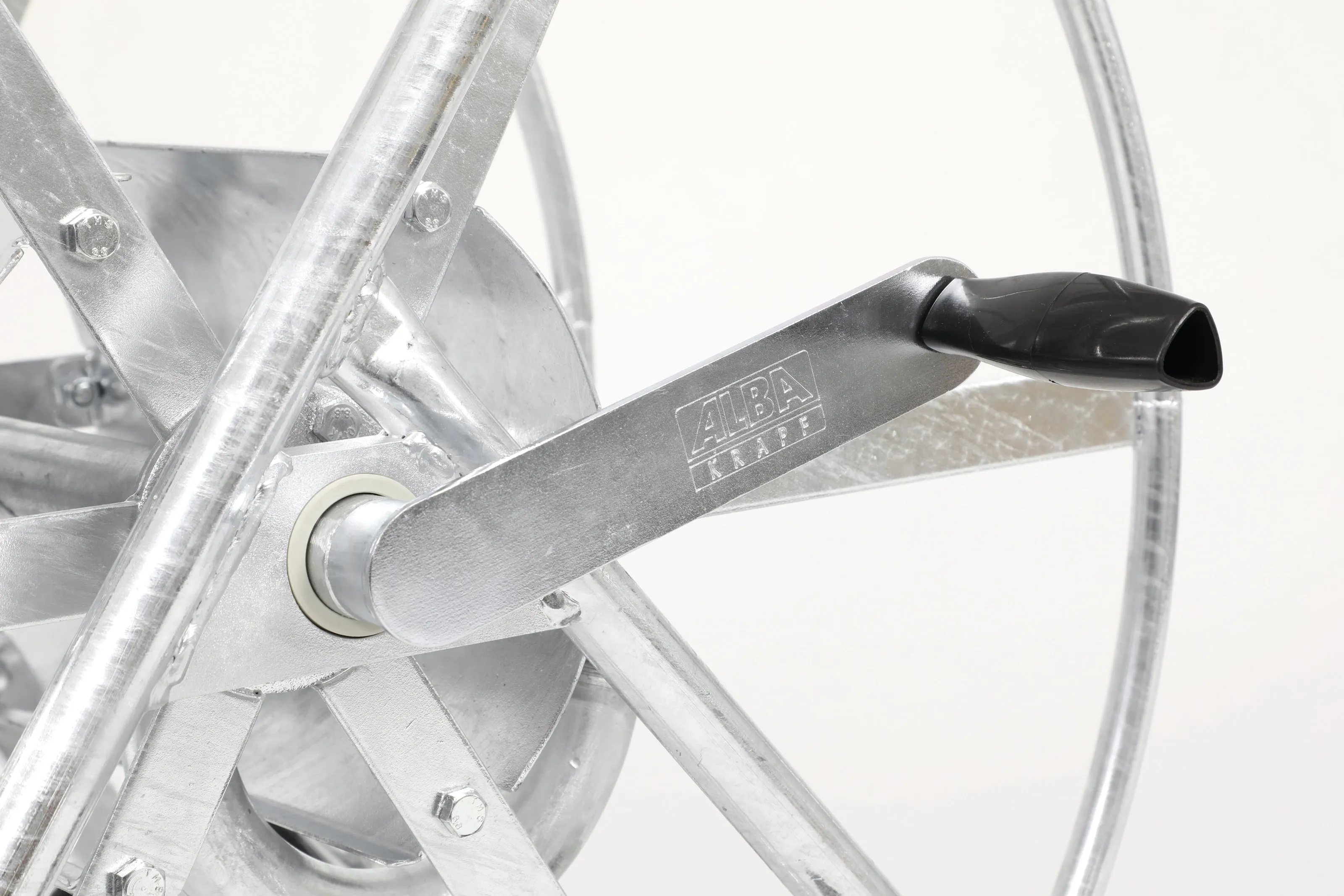

ERGONOMIC CRANK
Longer lever. Less force.
185 mm crank lever instead of the 140 mm of the standard models — the longer lever travel makes winding up long, heavy hoses noticeably easier.
Built to last season after season — rotating wooden handle, ALBA KRAPF branding in the steel.
Longer lever. Lighter work.

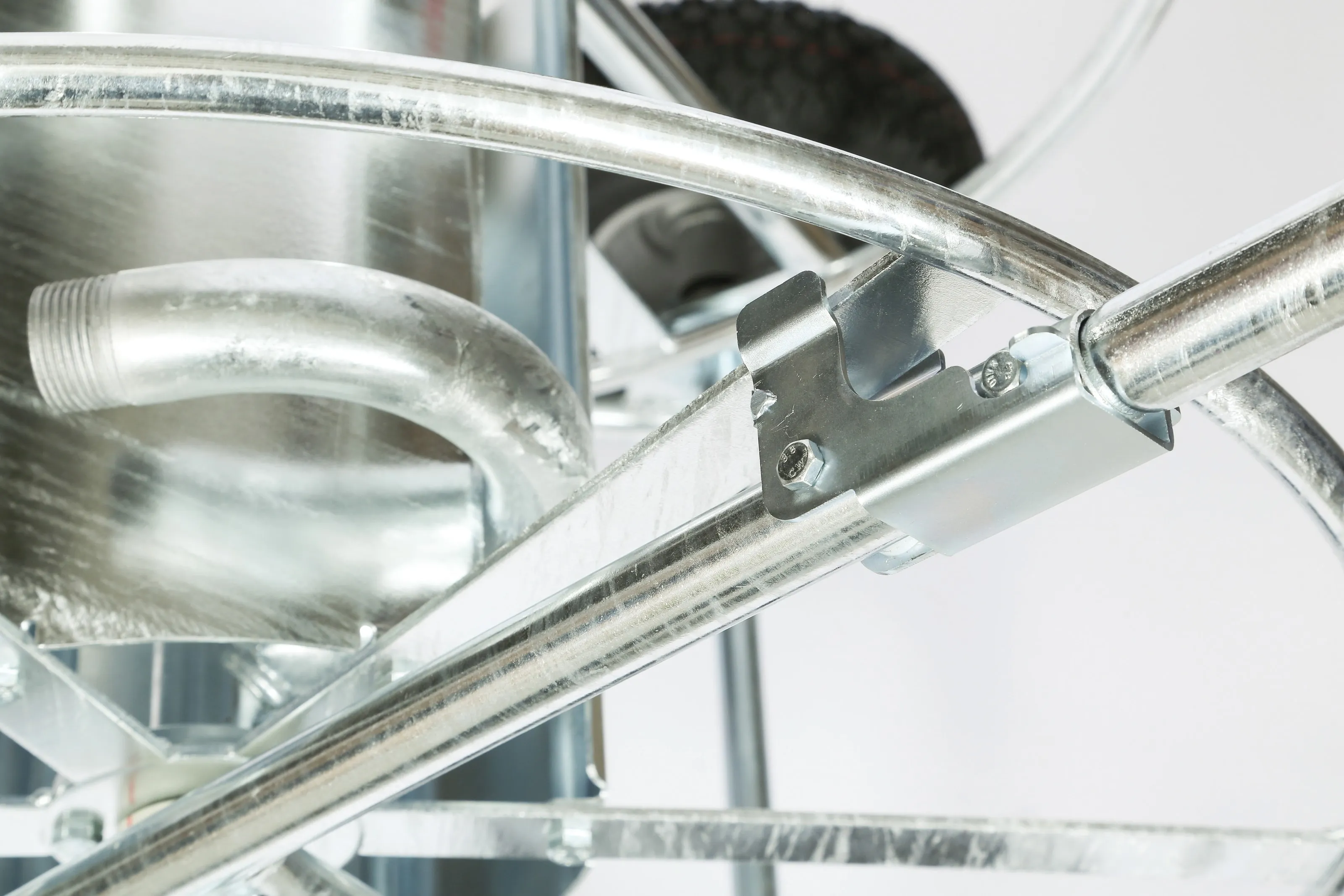

DRUM LOCK
Drum holds. Hose stays.
Drum brake via a central screw — the drum locks in place, the hose does not unwind on its own.
In storage, in transit, when connecting on site — the drum stands still, the hose stays put.
Firm. Tool-free.
Technical data
For high water volumes.
1″ flow-through — suited to hoses with higher delivery rates. Capacity by diameter.
| Diameter | Capacity |
|---|---|
| Ø 16 mm (5/8″) | 160 m |
| Ø 19 mm (3/4″) | 130 m |
| Ø 25 mm (1″) | 90 m |
Documents
Profi Series II — everything to download.
Documents, instructions and technical data — as PDFs.
