Status Series III wall-mounted reel, studio view

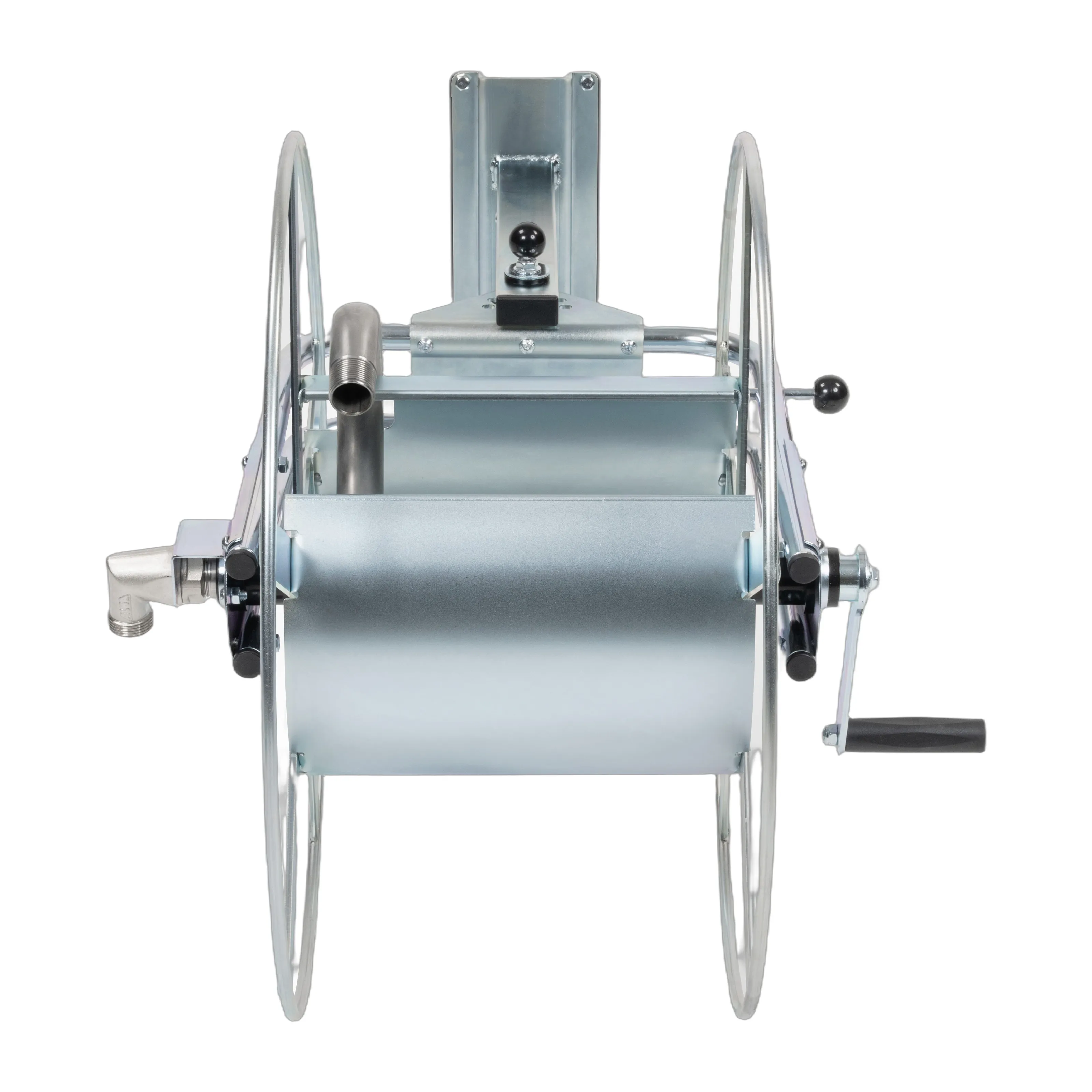

Status Serie III from the front — drum with continuous drum plate

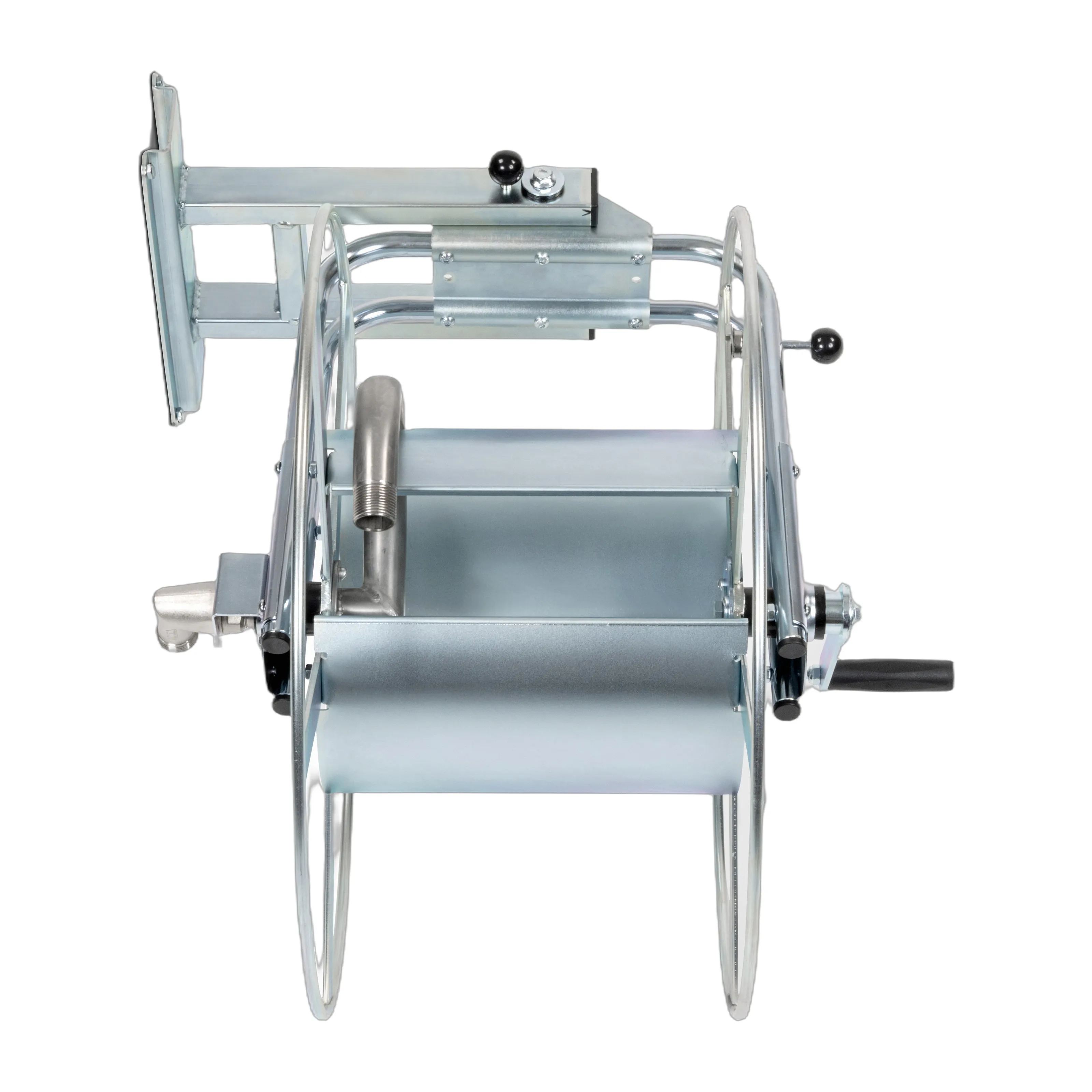

Status Serie III pivoted to the wall — folded in to save space

01 / 03 — Status Series III

WALL-MOUNTED REEL · GARDEN · CONSTRUCTION

StatusSeries III

Pivoting wall-mounted reel with comfort connection bend — a fixed place on the wall, pivots in any direction for work.

Art.-Nr. 11525

01 Pivoting wall bracket — hose always within reach, pivots in any direction for work.
02 Full 3/4″ water flow-through — continuous through the entire unit. Plenty of water in little time.
03 Stainless comfort connection bend 3/4″ — for a kink-free water feed.
04 Continuous drum plate — gentle on the hose when winding.
05 Pressure-resistant 25 bar brass rotating water connector, ball-bearing-mounted — up to 100 °C, for continuous use.
06 Sliding magnetic brake — locks the drum without tools.
07 Ergonomic crank with 140 mm lever — force-saving, precise.
08 Double frame, bracket plate bolted at 4 points — solidly built for intensive use.
09 Galvanically zinc-plated all-steel, chromium-6-free — corrosion protection for garden and outdoor use.
10 5-year functional warranty · 10-year spare parts availability.

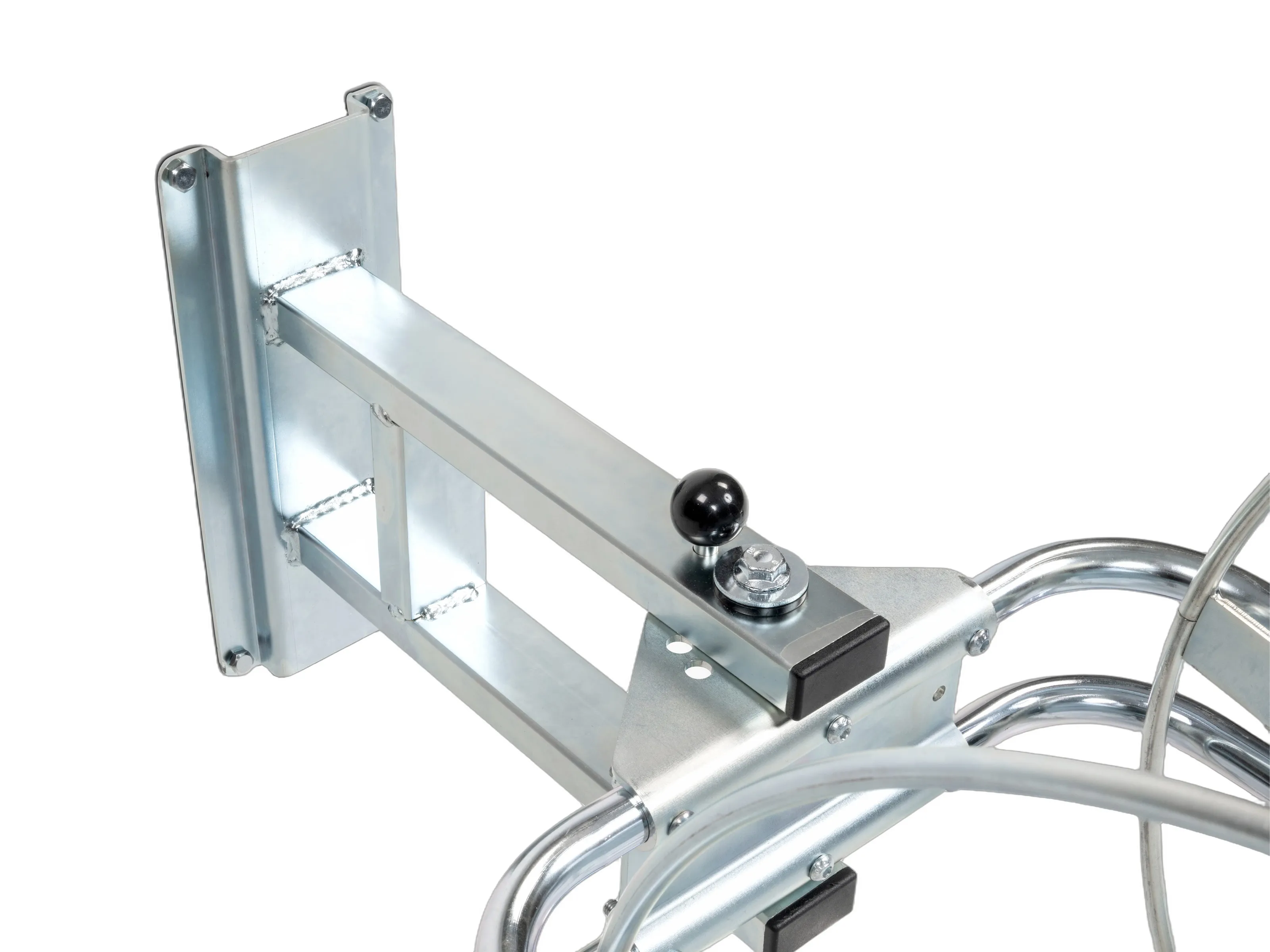

Wall console with extension arm and bolted wall plate — Pivoting

WALL MOUNTING

Fixed to the wall. Pivots for work.

Pivoting wall bracket — the hose has its fixed place, always within reach on the wall.

During work the wall model pivots to follow the hose — the hose tracks the movement, straight and kink-free.

Where the hose belongs.

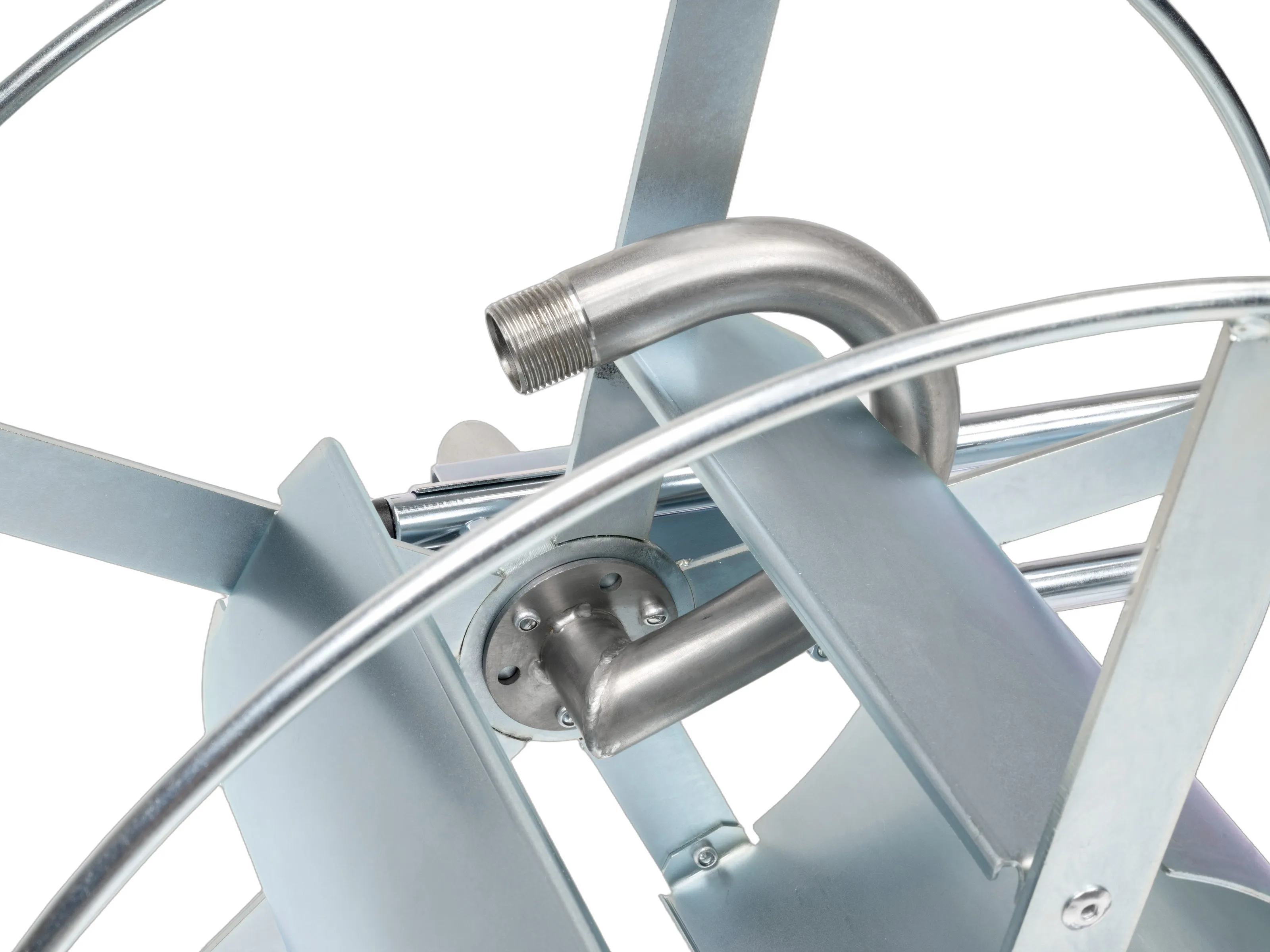

Detail of the stainless 3/4″ comfort connection bend — Comfort connection

WATER ROUTING

Kink-free. Right at the water connection.

Stainless comfort connection bend at the inlet — the hose runs into the drum in a clean curve, no kinking under pressure.

Behind the bend sits the pressure-resistant 25 bar brass rotating water connector, ball-bearing-mounted — up to 100 °C, for continuous use and long runs. The water flow-through stays full: 3/4″ — continuous through the entire unit.

A curve instead of a kink.

DRUM

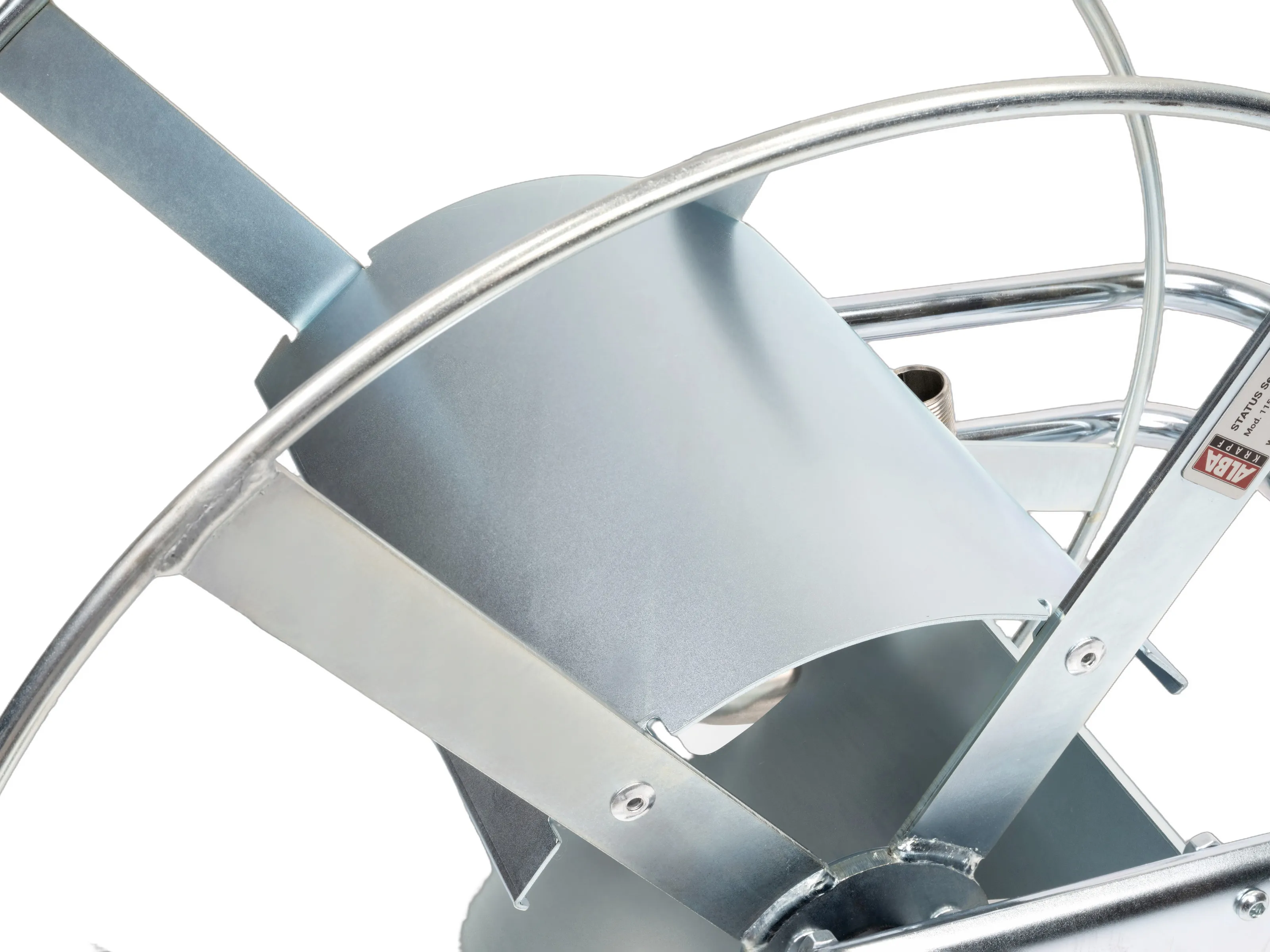

Continuous drum plate.

A continuous drum plate instead of thin spokes — prevents the hose from kinking as it winds on, even with a full drum.

The hose rests on a flat surface instead of on edges — gentle, layer by layer.

Gentle on the hose.

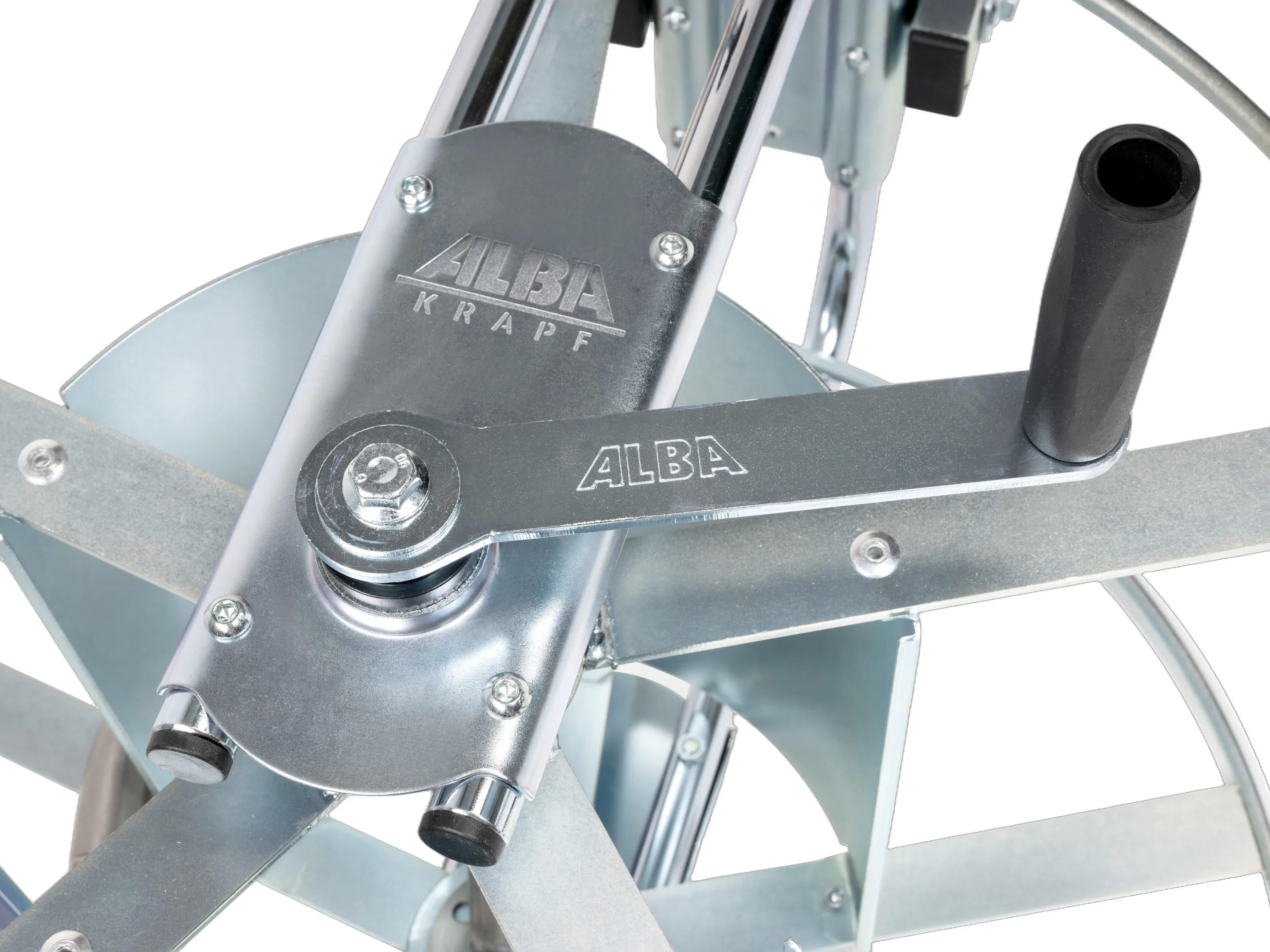

Bracket plates with crank and double-bearing drum — Bracket and crank

CONSTRUCTION

Double bearings. Comfortable to operate.

Wide bracket plates, bolted at 4 points, the drum on double bearings — the mechanism sits firm and runs smoothly.

Plus the ergonomic crank with 140 mm lever — force-saving and precise, turn after turn.

Mechanics that last.

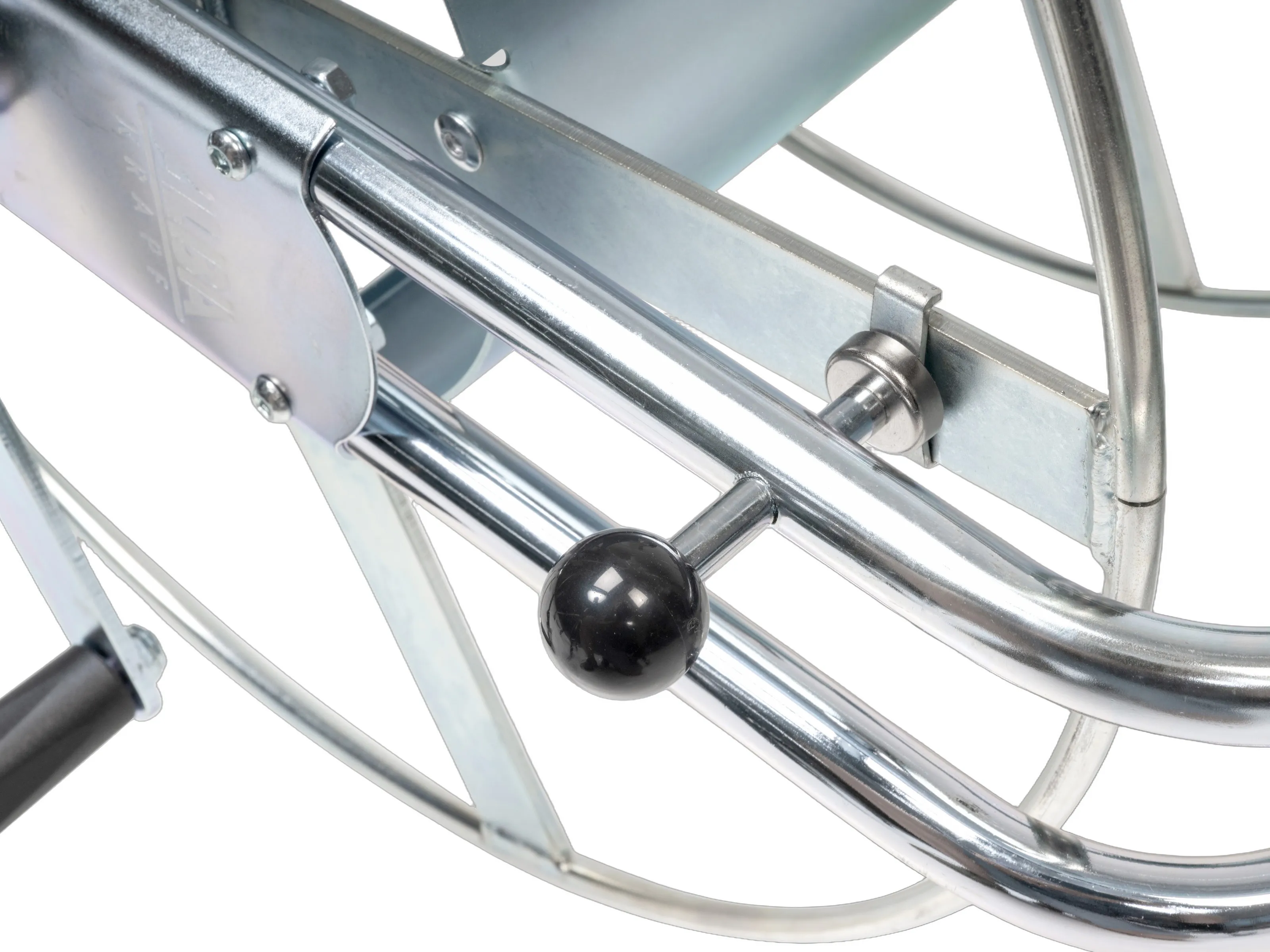

Detail of the sliding magnetic brake on the drum — Magnetic brake

LOCK

Drum holds. Hose stays.

Magnetic brake, slid by hand — pushed in, it locks the drum and the hose stays coiled.

In storage, when connecting, when filling — the drum stands still, the hose stays where it should.

Firm. Tool-free.

Technical data

Fits every hose.

Common diameters — depending on application and desired reach.

Diameter	Capacity
Ø 13 mm (1/2″)	100 m
Ø 16 mm (5/8″)	80 m
Ø 19 mm (3/4″)	50 m
